Front Wheel Toe Adjustment

FRONT TOE ADJUSTMENT

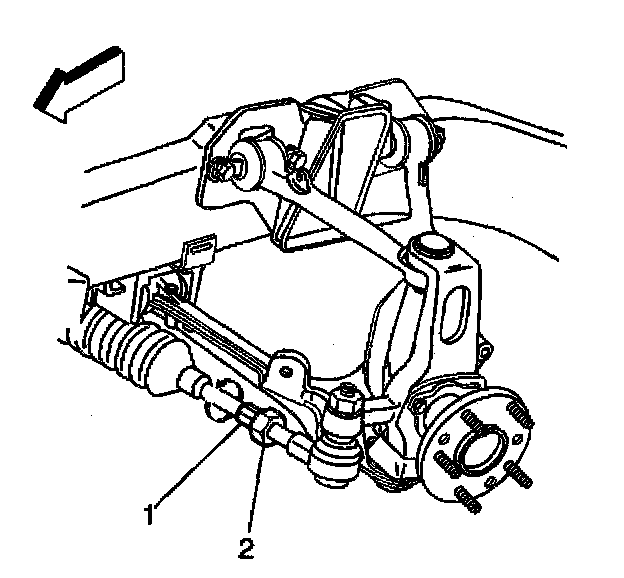

1. Loosen the jam nut on the tie rod (2).
2. Rotate the inner tie rod (1) to the required toe specification setting. Refer to Wheel Alignment Specifications.
3. Tighten the jam nut on the tie rod.

NOTICE: Refer to Fastener Notice in Service Precautions.

- Tighten the front tie rod jam to 68 Nm (50 ft. lbs.).

4. Check the toe setting after tightening.
5. Adjust the toe setting if necessary.
.
