Home >> Chevrolet >> 1999 >> Corvette V8-5.7L VIN G >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Body Control Module >> Diagrams >> Electrical Diagrams >> Hood Ajar Indicator Switch

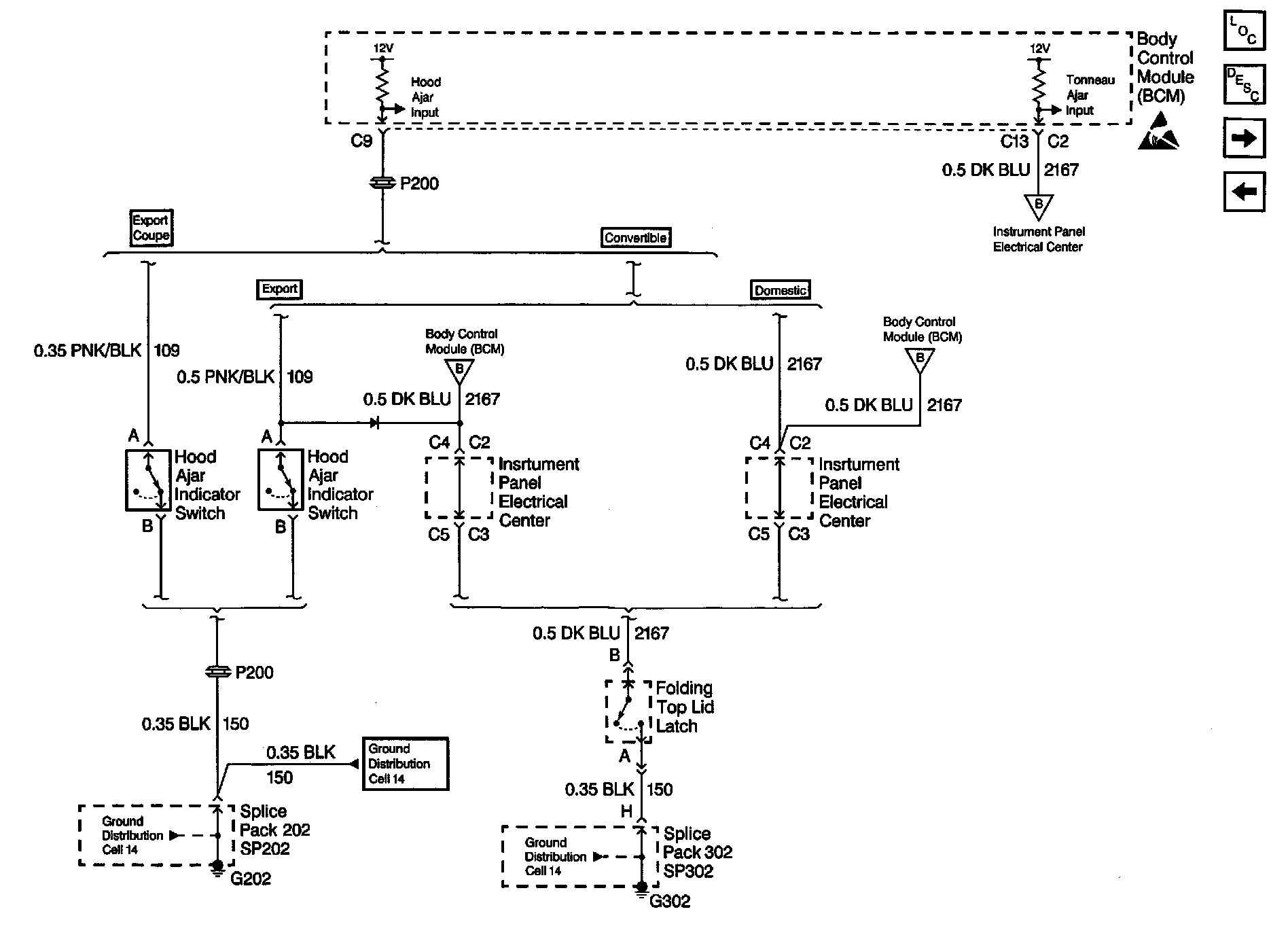

Hood Ajar Indicator Switch

Hood Ajar Indicator Switch:
