Oil Pressure Sensor: Service and Repair

REMOVAL PROCEDURE




1. Remove the intake manifold.

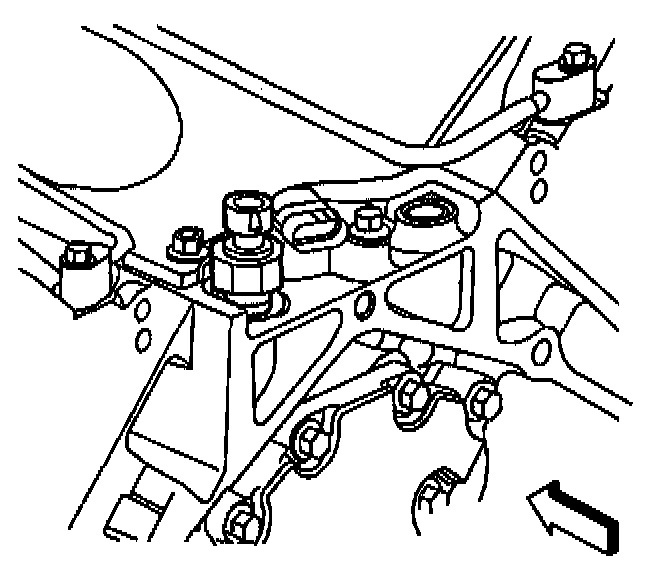

2. Remove the Engine Oil Pressure (EOP) sensor electrical connector.





IMPORTANT: Clear the area around the EOP sensor before removal. This avoids debris from entering the engine.

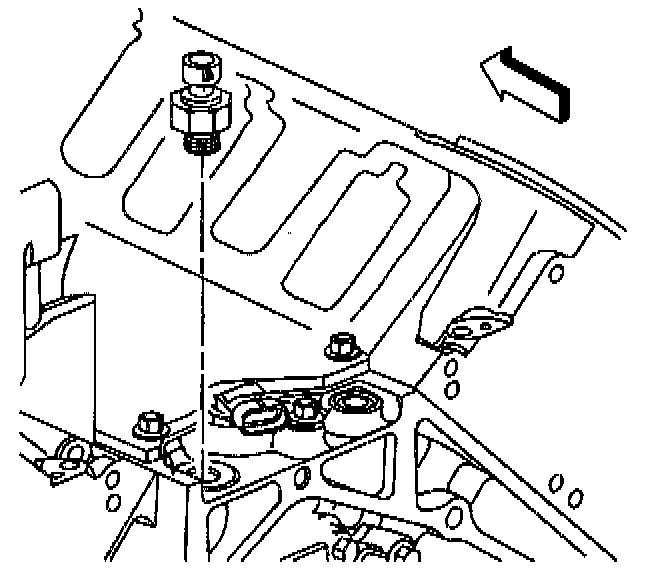

3. Remove the EOP sensor.

INSTALLATION PROCEDURE





NOTE: Refer to Fastener Notice in Cautions and Notices.

1. Install the new EOP sensor.

Tighten
Tighten the EOP sensor to 20 N.m (15 lb ft).




2. Install the EOP sensor electrical connector.
3. Install the intake manifold.
4. Perform the idle learn procedure. Refer to PCM Idle Learn Procedure.
5. Program the transmitters. Refer to Transmitter Programming/Synchronization in Keyless Entry.
