Displayed Input Status

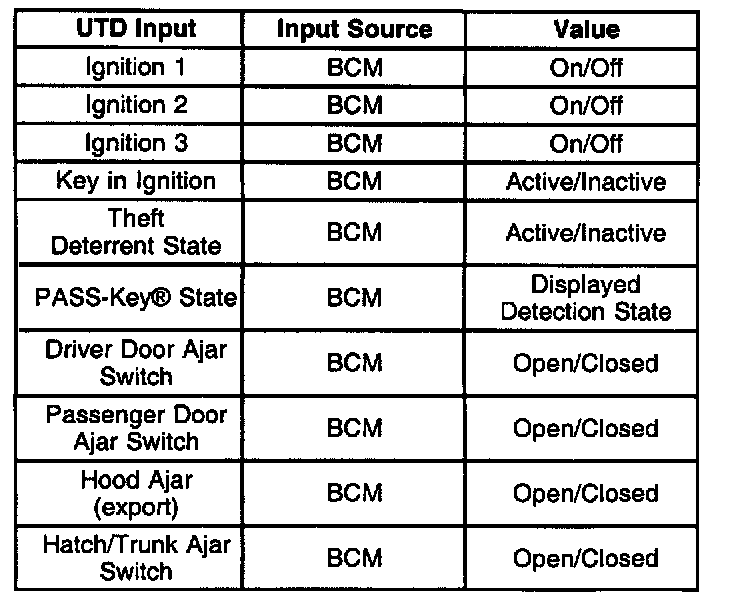

UTD Input Display (Part 1 Of 2):

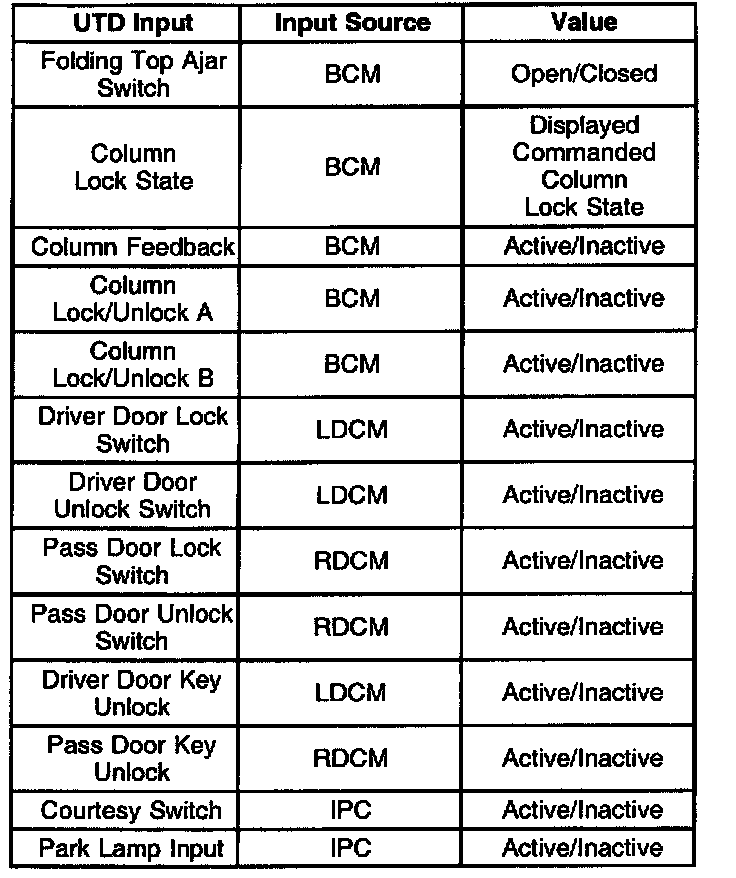

UTD Input Display (Part 2 Of 2):

The scan tool displays UTD input status. Select the appropriate system's input status display in order to display the data and determine if the switched inputs can be properly interpreted. The display also indicates if the input has changed states. For example, when a door is closed, the scan tool displays the input status of the door ajar switch as INACTIVE. When the door is open, the scan tool reads ACTIVE. Use this kind of information when diagnosing a malfunction associated with a particular UTD input or an input that is shared with another system. The following table describes where to access scan tool input information that affects UTD operation.
