Chevrolet
>>
1999
>>
Corvette V8-5.7L VIN G
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Throttle Position Sensor
>>
Diagrams
>>
Connector Views
Connector Views

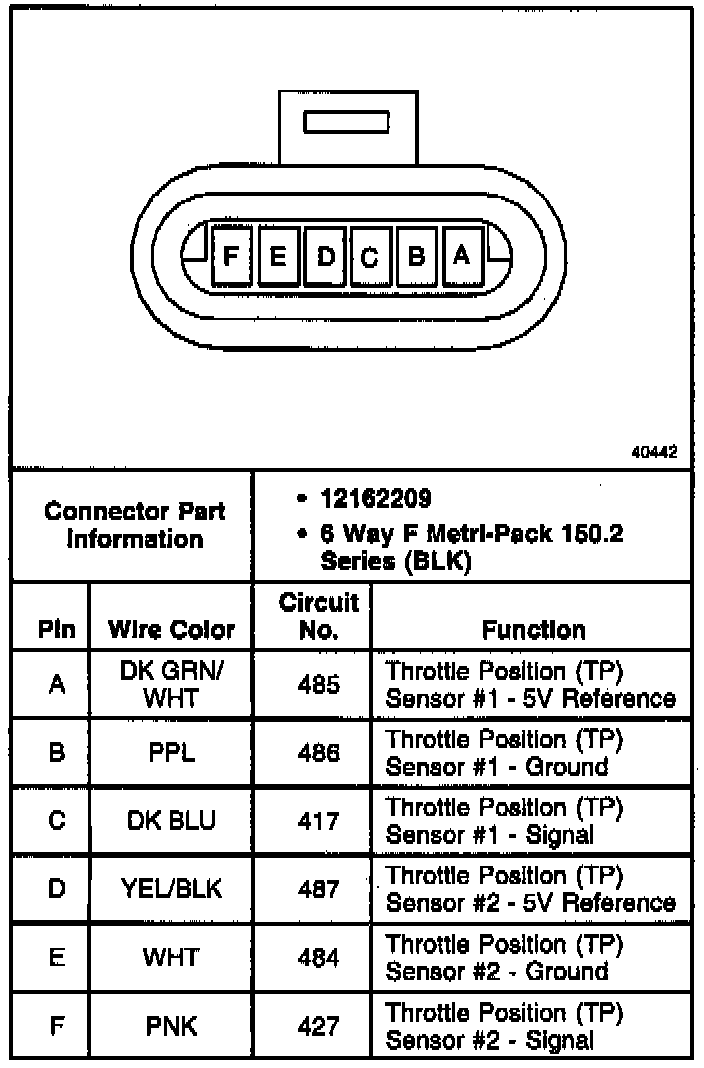

Throttle Positon (TP) Sensor:
