Installation Procedure

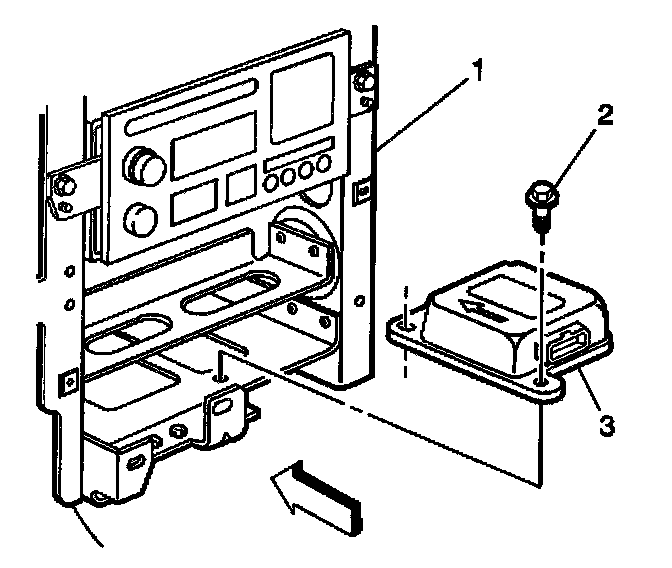

1. Install the SDM (3) to the Instrument Panel (IP) center support system (1).

Notice: Refer to Fastener Notice in Cautions and Notices.





1. Install the SDM (3) to the IP center support system (1).

Notice: Refer to Fastener Notice in Cautions and Notices.

2. Install the SDM mounting fasteners (2).

Tighten
Tighten fasteners to 10 N.m (89 lb in).

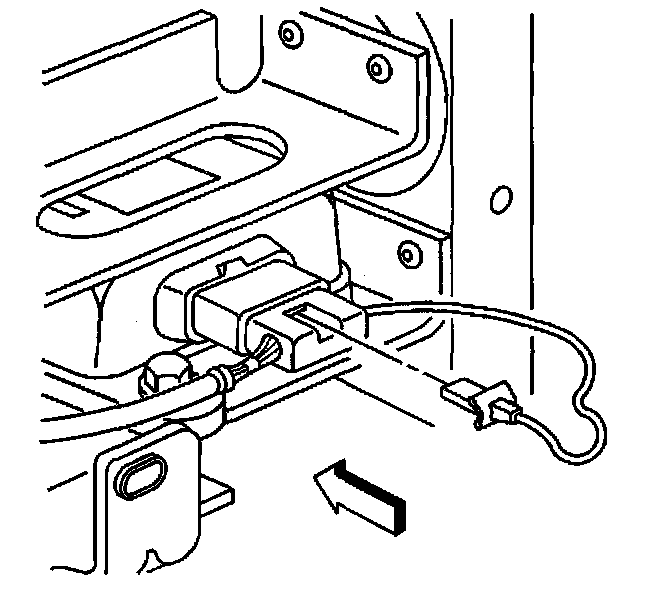

3. Install the SDM harness connector to the SDM.





4. Install the Connector Position Assurance (CPA) to the SDM harness connector.
5. Install the heater and A/C control head.
6. Install the accessory trim plate.
7. Enable the SIR system.
