V5 - Conventional Mount

TOOLS REQUIRED
^ J 5403 Snap Ring Pliers
^ J 39500-B R-134a Air Conditioning Refrigerant Recovery, Recycling And Recharging System

1. Recover the refrigerant using the J 39500-B.
2. Remove the control valve retaining ring using the J 5403.

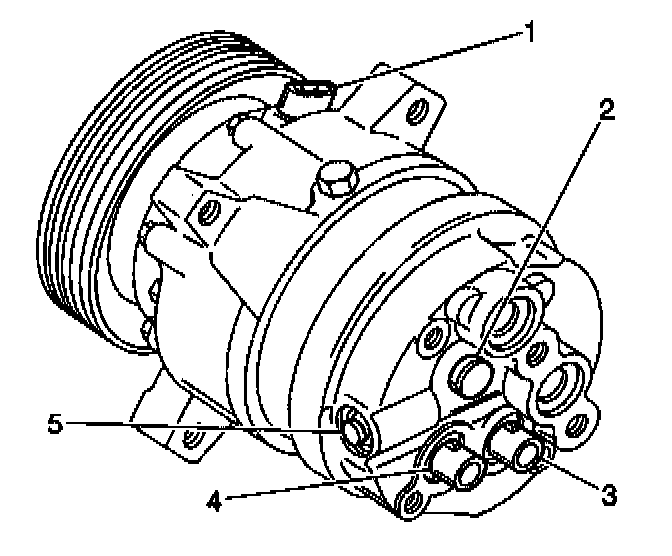

3. Remove the control valve assembly (5).
