Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
1999
>>
Metro L3-061 1.0L VIN 6 TBI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Idle/Throttle Speed Control Unit
>>
Locations
>>
Idle Speed Control (ISC) Motor

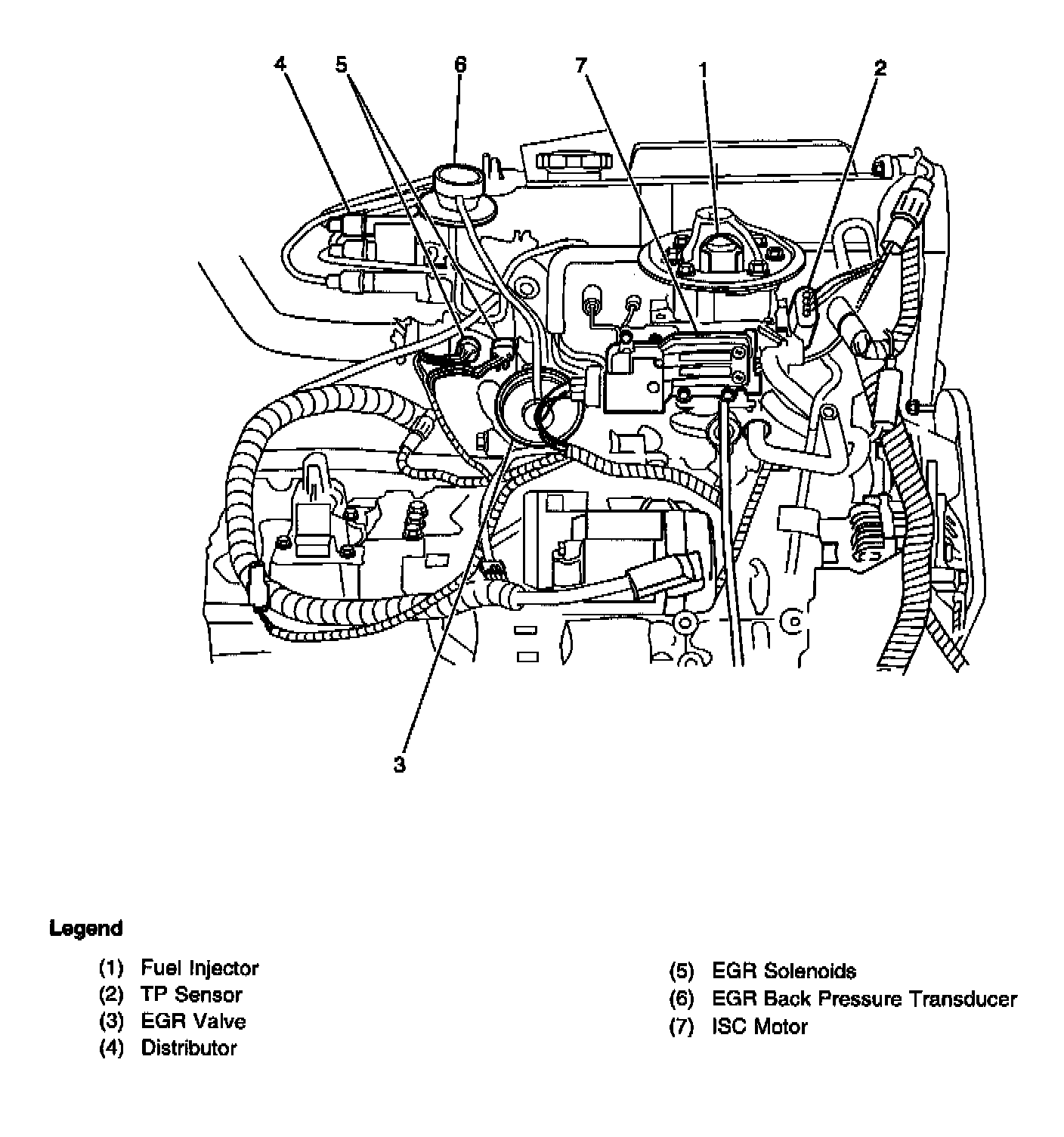

Idle Speed Control (ISC) Motor
PCM Controlled Devices:
TBI Assembly And EGR System:
Top of engine, mounted to the throttle body
