Rear Wheel Alignment

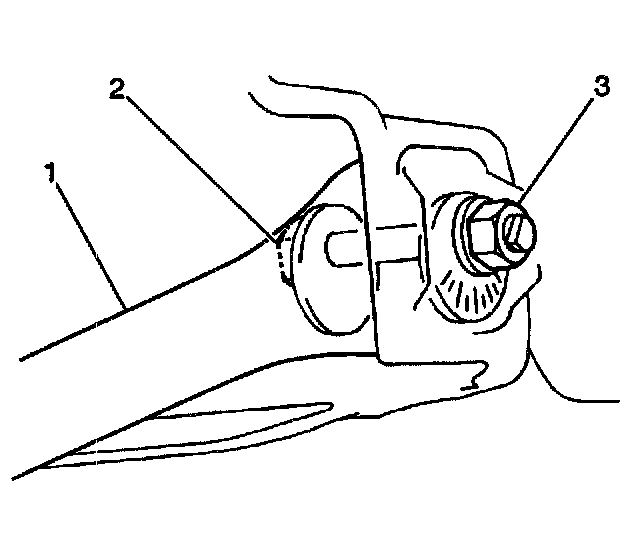

1. Adjust the rear toe by loosening/tightening both body-side (cam) control rod nuts (3) and bolts (2).
2. Loosen the right and left body-side control rod nuts (3).
3. Loosen the right and left body-side control rod bolts (cam bolts) (2) by the same amount.
4. Set the rear total toe to 0.3 to 0.6 degrees.

NOTICE: Refer to Fastener Notice in Service Precautions.

IMPORTANT: Hold the control rod bolt with a wrench to prevent it from turning while tightening the control rod nuts.

5. Tighten the left and right body-side control rod nuts.

Tighten the left and right body-side control rod nuts to 30 Nm (59 ft. lbs.).
