Electronic Brake Control Module: Service and Repair

REMOVAL PROCEDURE





1. Remove the I/P sound insulator panel.

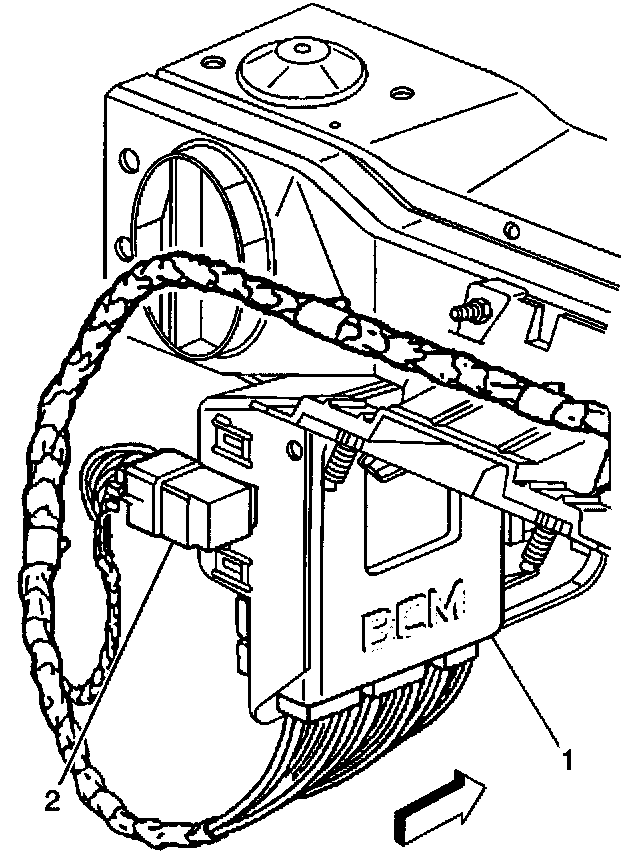

2. Use pressure tabs in order to release the EBCM (1) from the EBCM bracket (2).
3. Remove the EBCM electrical connectors.

INSTALLATION PROCEDURE





1. Install the EBCM electrical connectors.

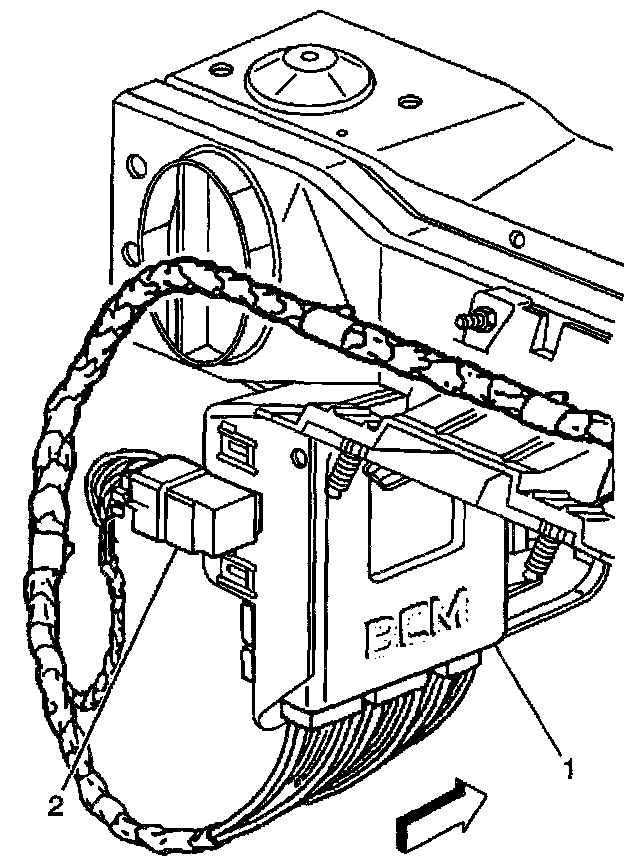

2. Slide the EBCM (1) into the EBCM bracket (2) until pressure tabs secure the EBCM.
3. Install the I/P sound insulator panel.
