Lower

REMOVAL PROCEDURE
1. Remove the compressor.
2. Remove the power steering pump, it equipped.
3. Remove 3 compressor lower mounting bracket bolts and remove the bracket from the vehicle.

INSTALLATION PROCEDURE

NOTE: Refer to Fastener Notice in Cautions and Notices.

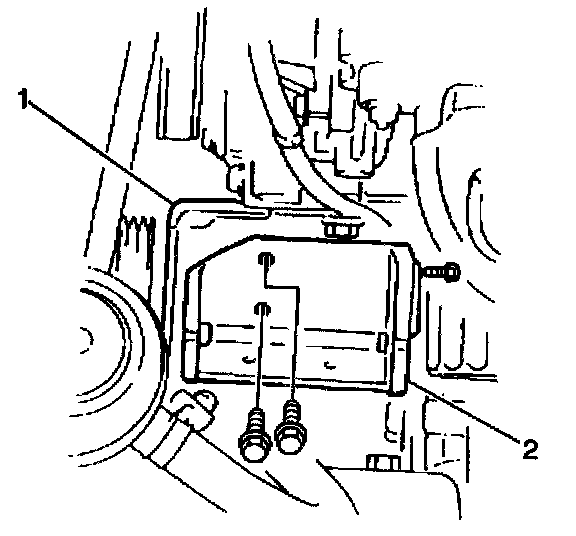

1. Install the compressor lower mounting bracket (2) to the vehicle and secure with three bolts.

Tighten
Tighten the compressor lower mounting bracket bolts to 18-25 N.m (13-20 lb ft).

2. Install the power steering pump, if equipped.
3. Install the compressor.
