Keyless Entry Receiver: Service and Repair

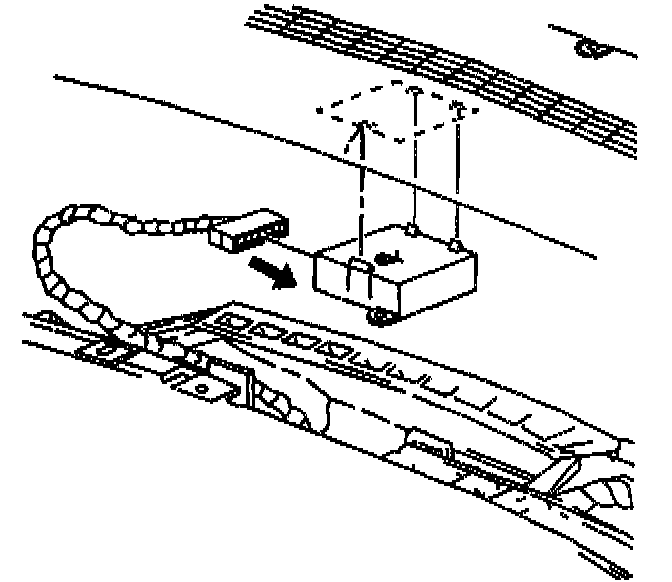

REMOVAL PROCEDURE
1. Remove the instrument panel upper trim.
2. Disengage the retaining tabs in order to remove the remote control door lock control receiver from the instrument panel upper trim.
3. Disconnect the remote control door lock receiver electrical connector.

INSTALLATION PROCEDURE
1. Connect the remote control door lock receiver electrical connector.
2. Engage the retaining tabs in order to install remote control door lock control receiver to the instrument panel upper trim.
3. Install the instrument panel upper trim.
