Mirrors: Service and Repair

REMOVAL PROCEDURE
1. Remove the front door trim panel.
2. Remove the front door water deflector.

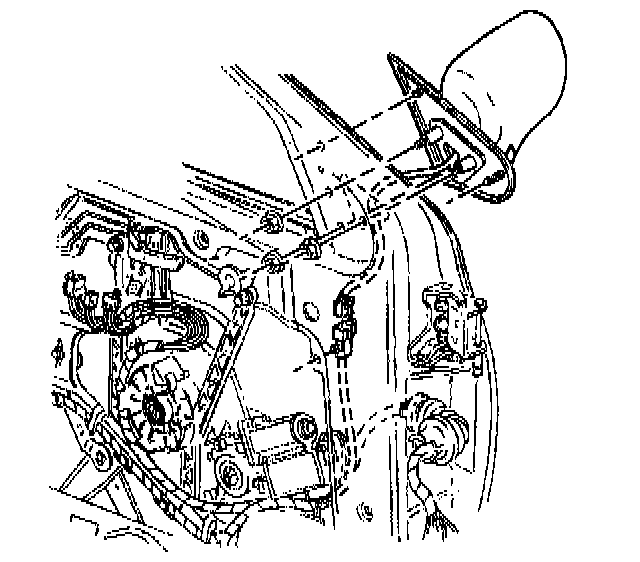

3. Remove the outside rearview mirror nuts.
4. Disconnect the electrical connectors.
5. Remove the outside rearview mirror from the front door.

INSTALLATION PROCEDURE
1. Install the outside rearview mirror to the front door.
2. Connect the electrical connector.

NOTE: Refer to Fastener Notice in Cautions and Notices.

3. Install the outside rearview mirror nuts.

Tighten
Tighten the nuts to 10 N.m (89 lb in).

4. Install the front door water deflector.
5. Install the front door trim panel.
