Home >> Chevrolet >> 1999 >> Venture V6-3.4L VIN E >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Electronic Brake Control Module >> Locations >> Component Locations

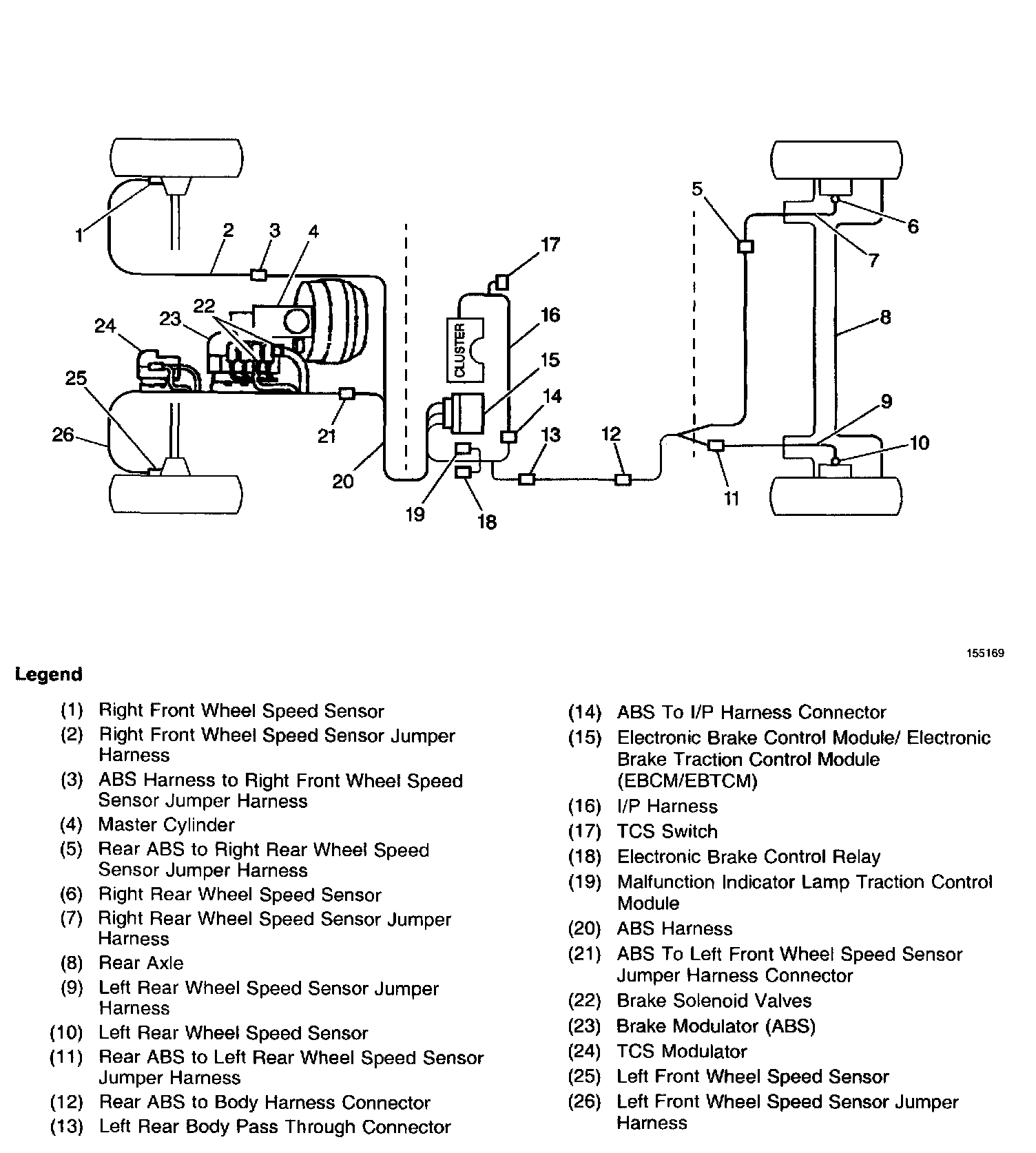

Component Locations

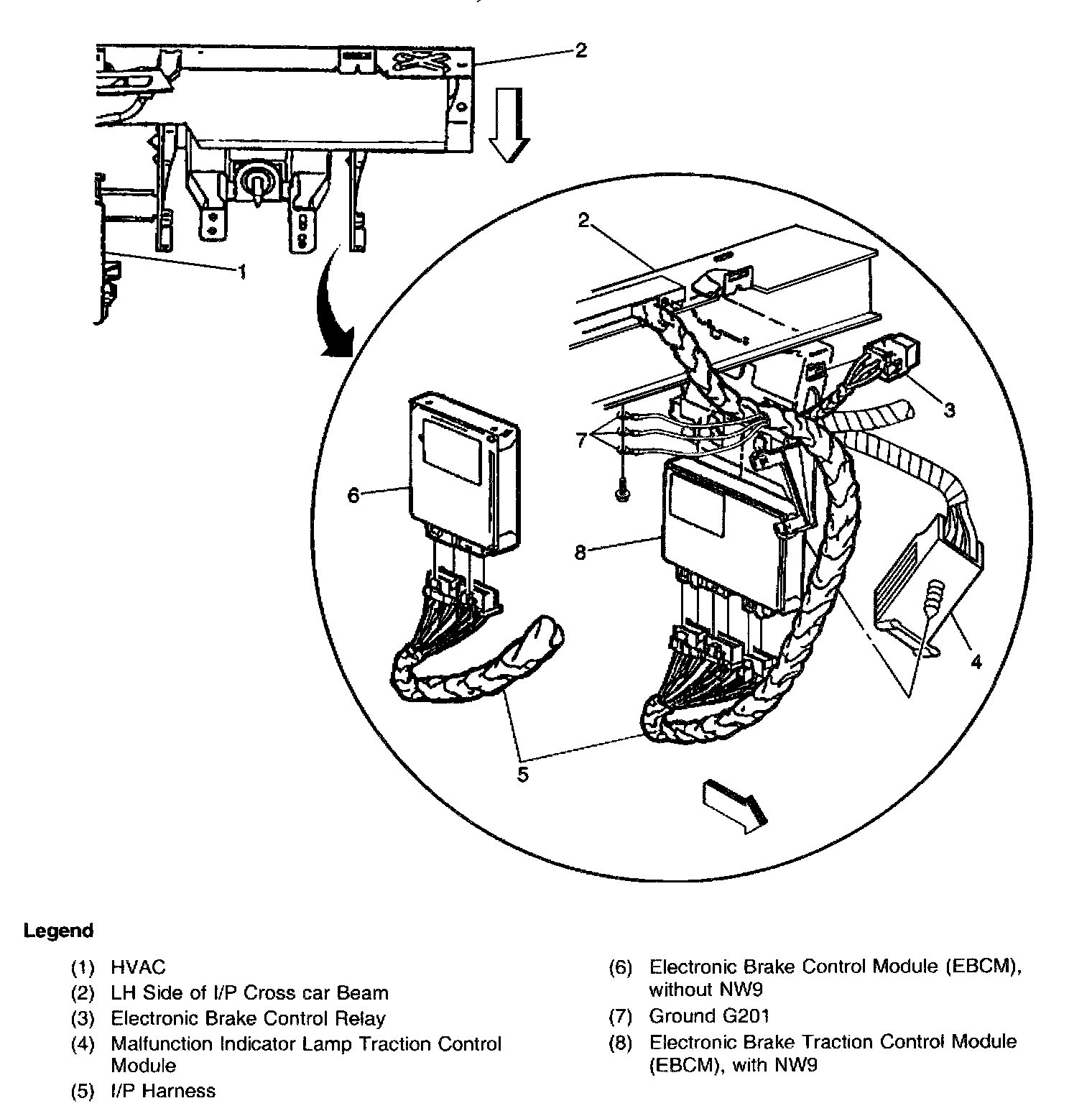

Electronic Brake Control Module/Electronic Brake Traction Control Module (EBCM/EBTCM): Left side of the IP, above the parking cable bracket
