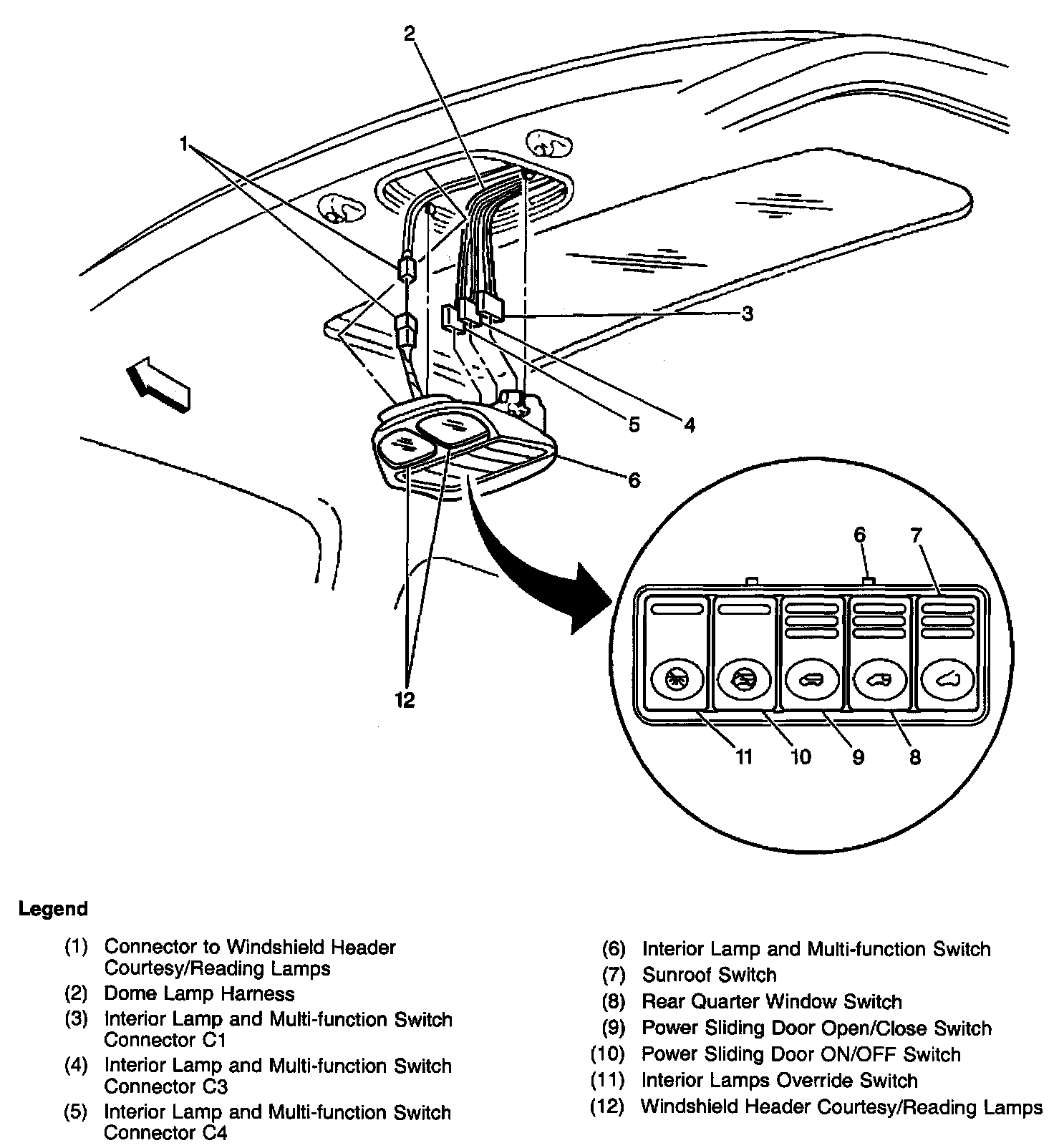

Interior Lamp and Multi-function Switch

Front Of Roof Headliner (Roof Console):





Center in front of the roof headliner
