Fluid Pressure Sensor/Switch, A/T

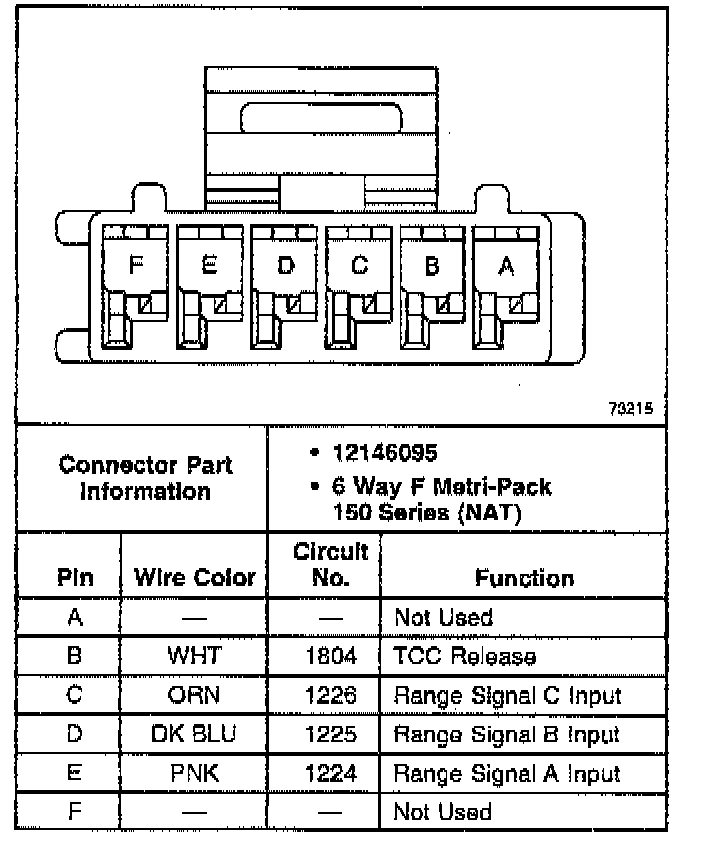

AUTOMATIC TRANSMISSION FLUID PRESSURE (TFP) MANUAL VALVE POSITION SWITCH CONNECTOR, WIRING HARNESS SIDE
