Home >> Chevrolet >> 1999 >> Venture V6-3.4L VIN E >> Repair and Diagnosis >> Diagrams >> Connector Views >> Control Assembly, HVAC >> Auxiliary Heater-A/C Control C2

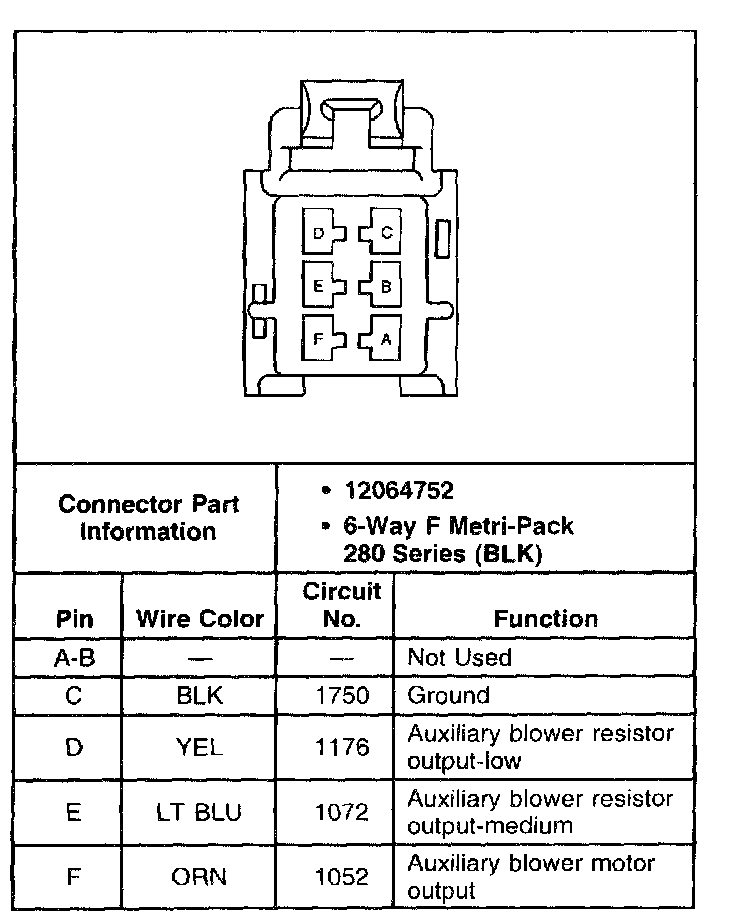

Auxiliary Heater-A/C Control C2

Auxiliary Heater-A/C Control C2:
