Venture V6-3.4L VIN E
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Wiper Switch
>>
Window Wiper/Washer and Multi-Function Switch, Rear
Window Wiper/Washer and Multi-Function Switch, Rear

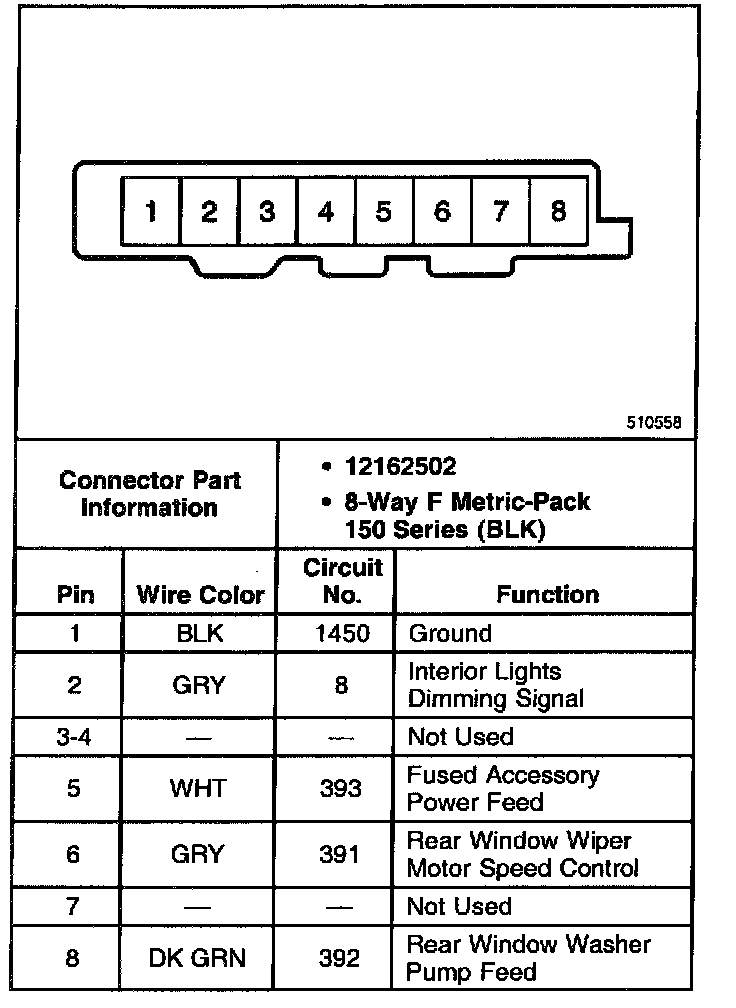

Rear Window Wiper/Washer And Multi-Function Switch:
