Home >> Chevrolet >> 1999 >> Venture V6-3.4L VIN E >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Antilock Brakes / Traction Control Systems >> ABS Module, Relay, Modulator, Power

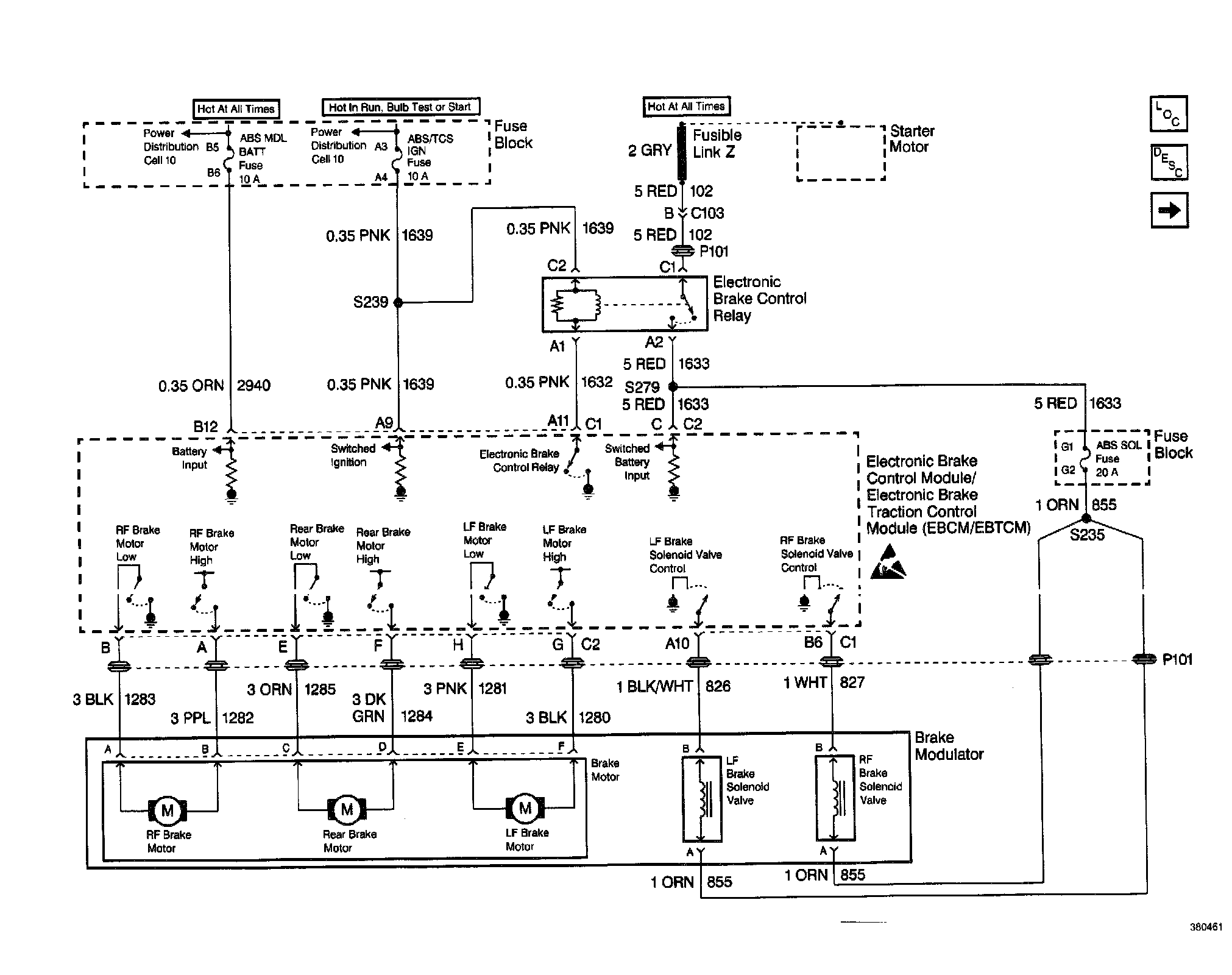

ABS Module, Relay, Modulator, Power
