Home >> Chevrolet >> 1999 >> Venture V6-3.4L VIN E >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Sliding Door >> PSD Module

PSD Module

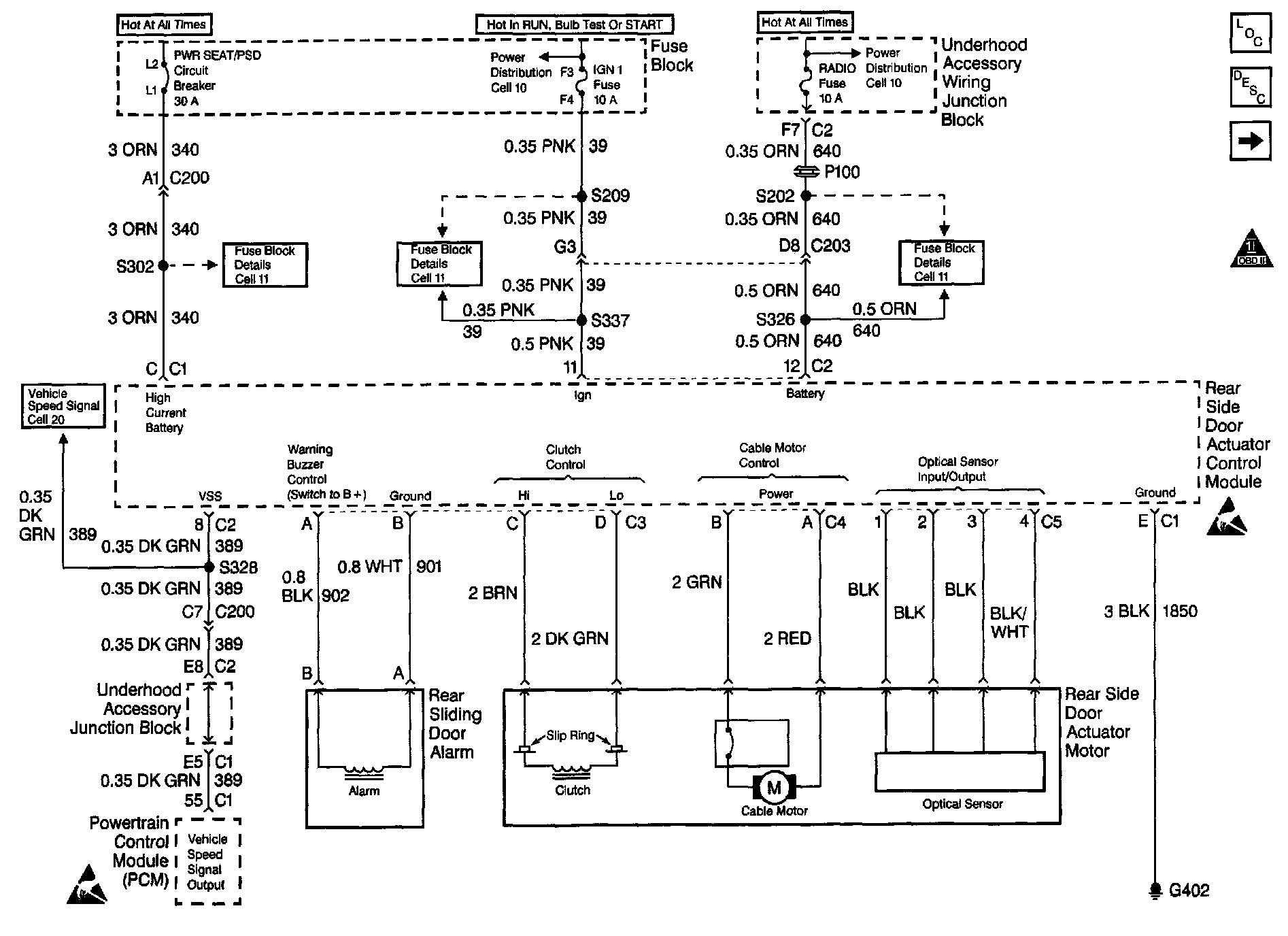

Power Sliding Door (PSD) Schematics (PSD Module):
