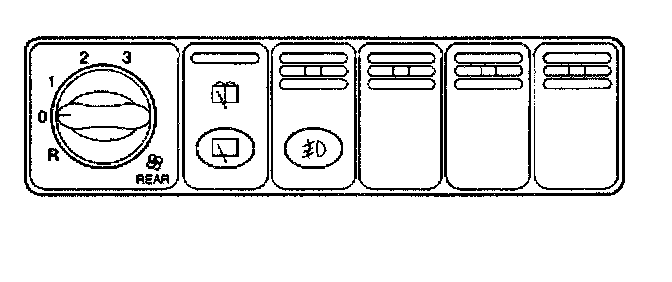

Control Assembly Replacement - Front Auxiliary A/C

REMOVAL PROCEDURE




1. Remove the instrument panel accessory trim plate.

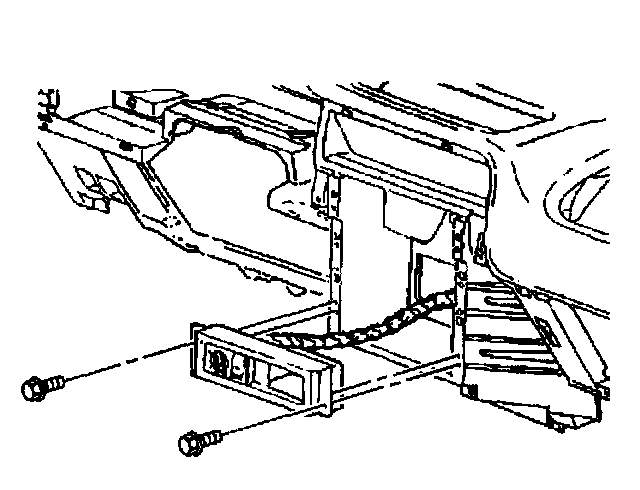

2. Remove the bolts/screws from the switch bank to instrument panel.
3. Pull straight out from the instrument panel in order to remove the switch bank from the instrument panel.

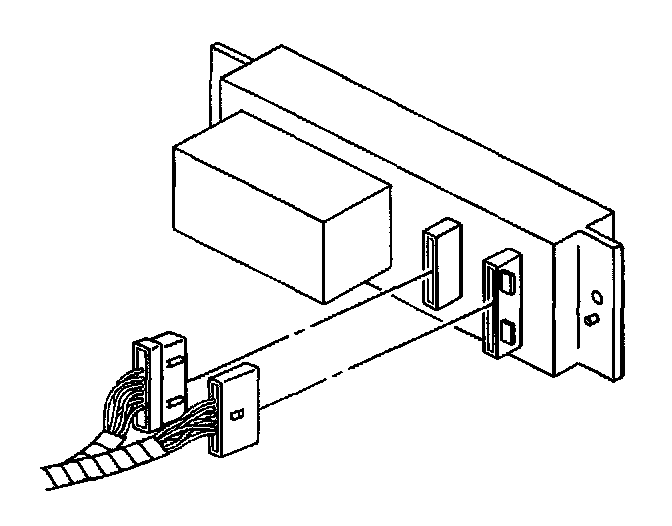

4. Disconnect the electrical connectors.

INSTALLATION PROCEDURE




1. Connect the electrical connectors.
2. Push in on the switch bank in order to install the switch bank.




NOTE: Refer to Fastener Notice in Service Precautions.

3. Install the bolts/screws to the switch bank to instrument panel.

Tighten
Tighten the bolts/screws to 2.5 N.m (22 lb in).




4. Install the instrument panel accessory trim plate.
