Map Light: Service and Repair

Side Rail Reading Lamp Replacement

REMOVAL PROCEDURE

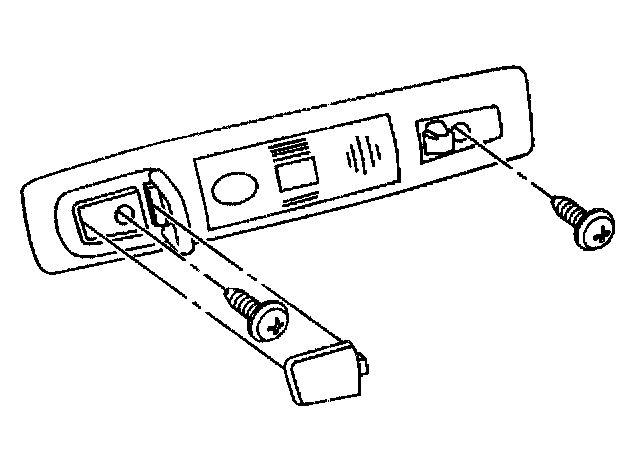

1. Using a small, flat-bladed tool, remove the coat hook access hole cover from the side rail reading lamp.
2. Remove the screws from the side rail reading lamp.




3. Remove the side rail reading lamp from the roof.

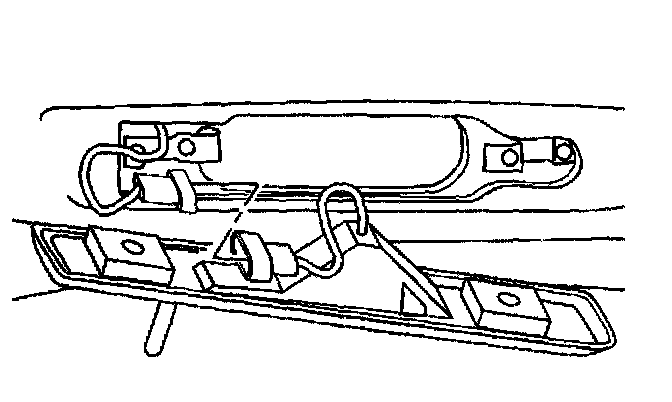

4. Disconnect the electrical connectors from the side rail reading lamp.

INSTALLATION PROCEDURE




1. Connect the electrical connectors to the side rail reading lamp.
2. Install the side rail reading lamp to the roof.





NOTE: Refer to Fastener Notice in Cautions and Notices.

3. Install the screws to the side rail reading lamp.

Tighten
Tighten the screws to 2 N.m (18 lb in).

4. Snap the coat hook access hole cover back into place on the side rail reading lamp.
