Fuel Filter: Service and Repair

REMOVAL PROCEDURE

IMPORTANT: There is no service interval for in-pipe fuel filter replacement. Only replace the in-pipe fuel filter if it is restricted.

1. Relieve the fuel system pressure. Refer to Fuel Pressure Relief Procedure.
2. Raise the vehicle. Refer to Lifting and Jacking the Vehicle in general information.

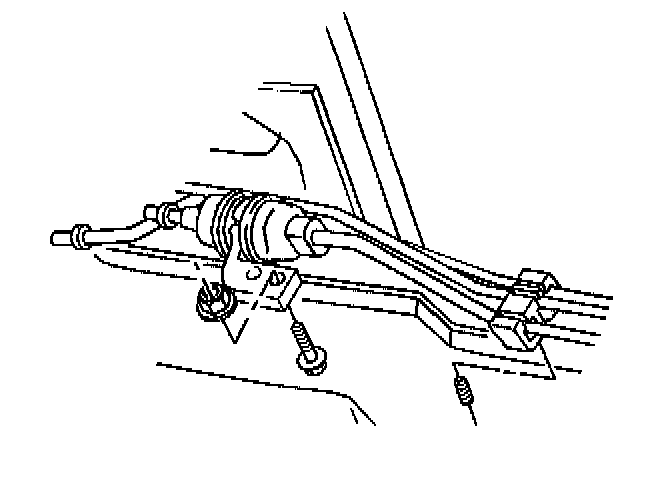

3. Remove the quick-connect fitting at the inlet of the in-pipe fuel filter.
4. Remove the quick-connect fitting at the outlet of the in-pipe fuel filter.
5. Drain any remaining fuel into an approved gasoline container.
6. Remove the in-pipe fuel filter mounting bracket attaching nut.
7. Remove the in-pipe fuel filter and mounting bracket.
8. Remove the in-pipe fuel filter from the in-pipe fuel filter mounting bracket.

INSTALLATION PROCEDURE

NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.

1. Remove the protective caps from the new in-pipe fuel filter.
2. Install the in-pipe fuel filter into the in-pipe fuel filter mounting bracket.
3. Install the in-pipe fuel filter and mounting bracket.

NOTE: Refer to Fastener Notice in Service Precautions.

4. Reinstall the in-pipe fuel filter mounting bracket attaching nut.

Tighten
Tighten the in-pipe fuel filter bracket attaching nut to 10 N.m (89 lb in).

5. Connect the quick-connect fitting at the inlet of the in-pipe fuel filter.
6. Connect the quick-connect fitting at the outlet of the in-pipe fuel filter.
7. Lower the vehicle.
8. Tighten the fuel fill cap.
9. Reconnect the negative battery cable.
10. Inspect for fuel leaks.
10.1. Turn the ignition switch ON for 2 seconds.
10.2. Turn the ignition switch OFF for 10 seconds.
10.3. Turn the ignition switch ON.
10.4. Check for fuel leaks.
