Home
>>
Chevrolet
>>
1999
>>
Venture V6-3.4L VIN E
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse
>>
Application and ID
>>
Instrument Panel Fuse Block
Instrument Panel Fuse Block

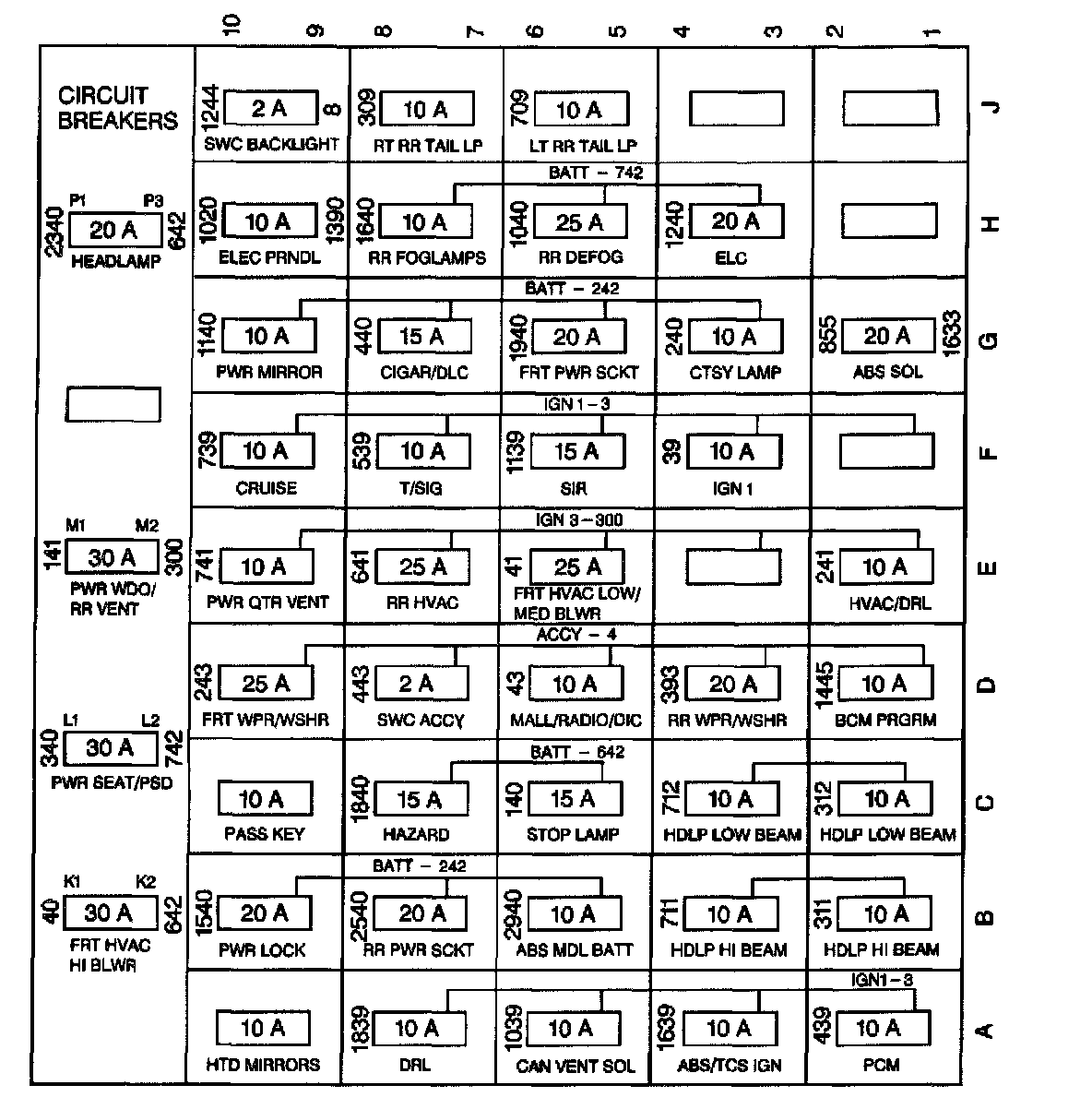

Instrument Panel Fuse Block:

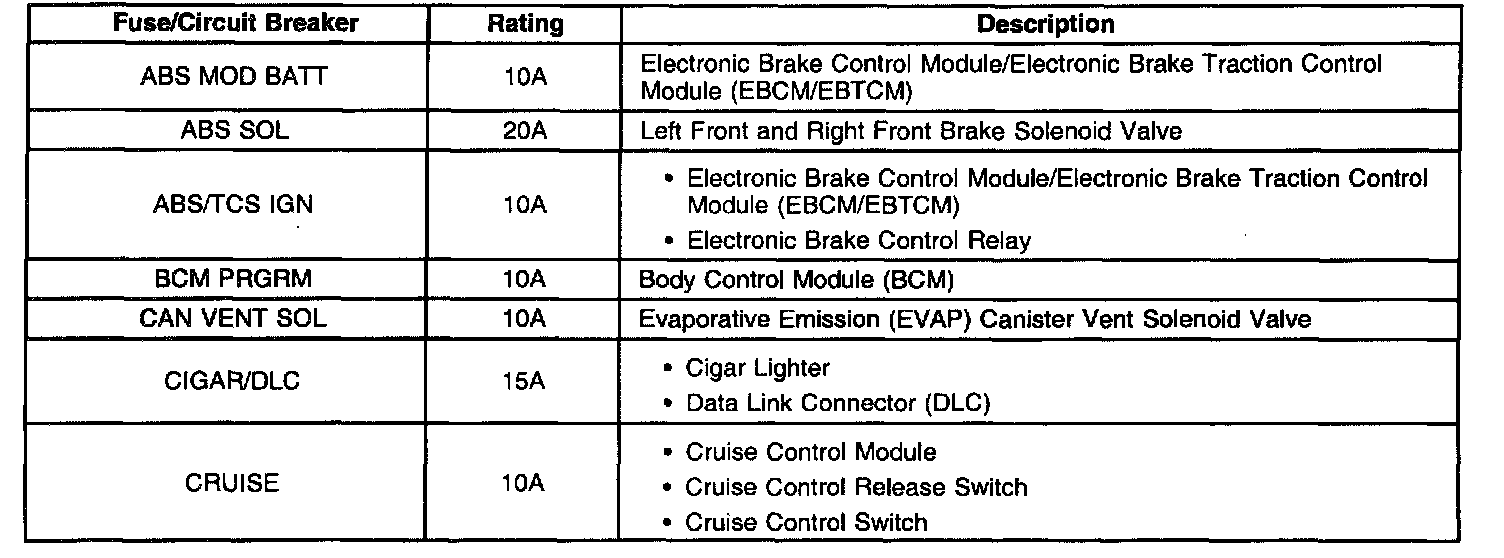

Fuse Block Application Table (Part 1 Of 3):

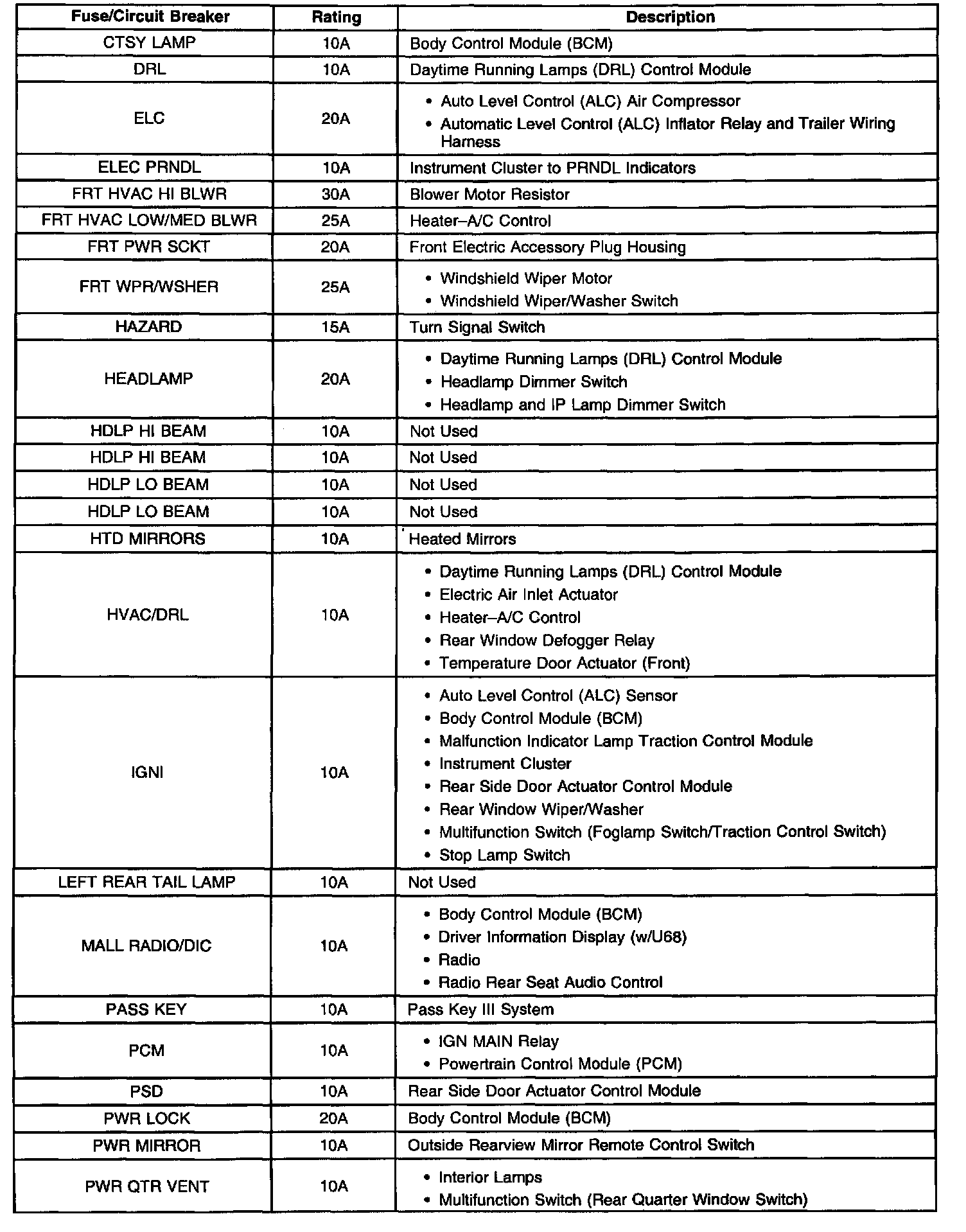

Fuse Block Application Table (Part 2 Of 3):

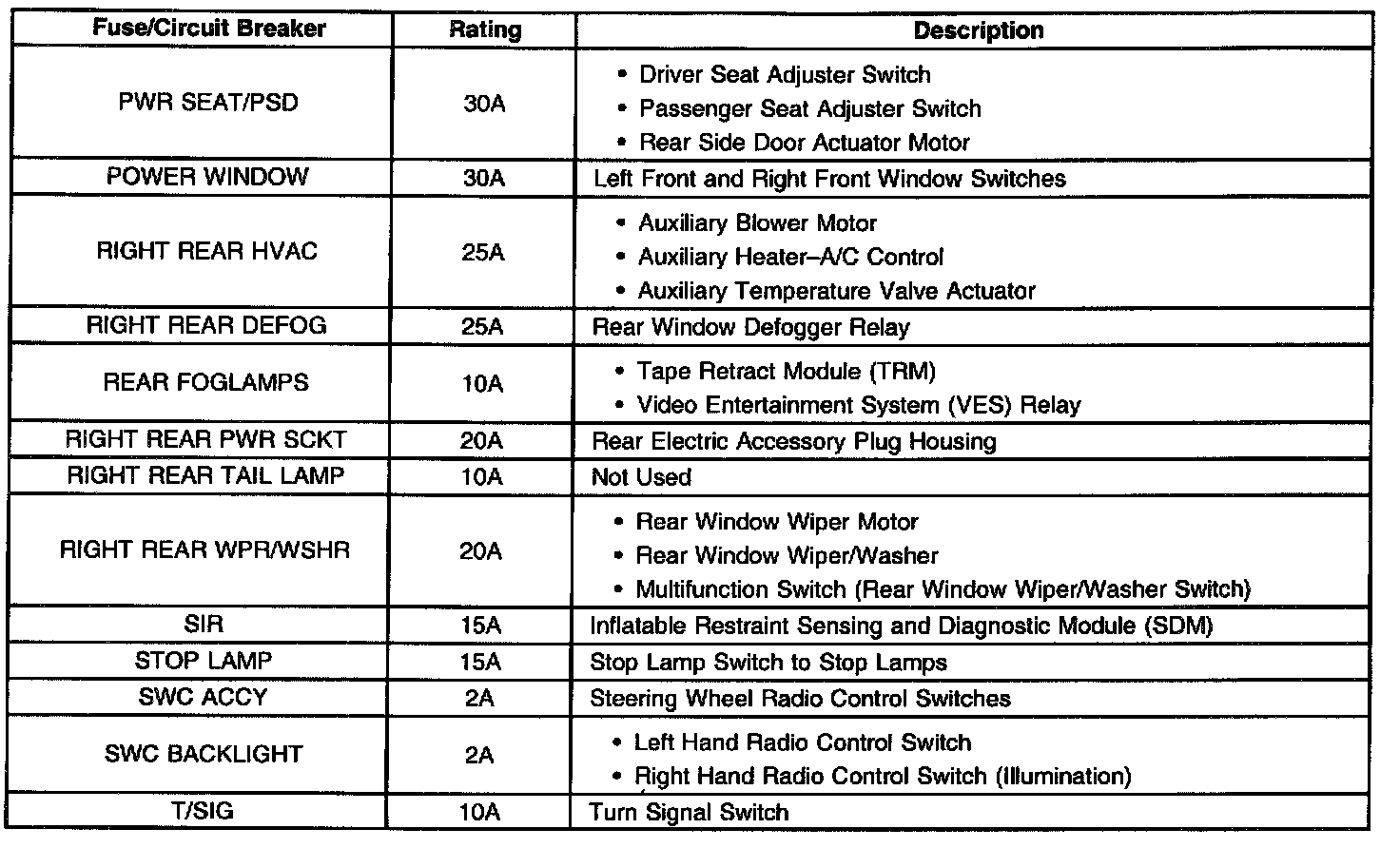

Fuse Block Application Table (Part 3 Of 3):
