Air Flow Meter/Sensor: Locations

Air Cleaner, PCM Assembly:

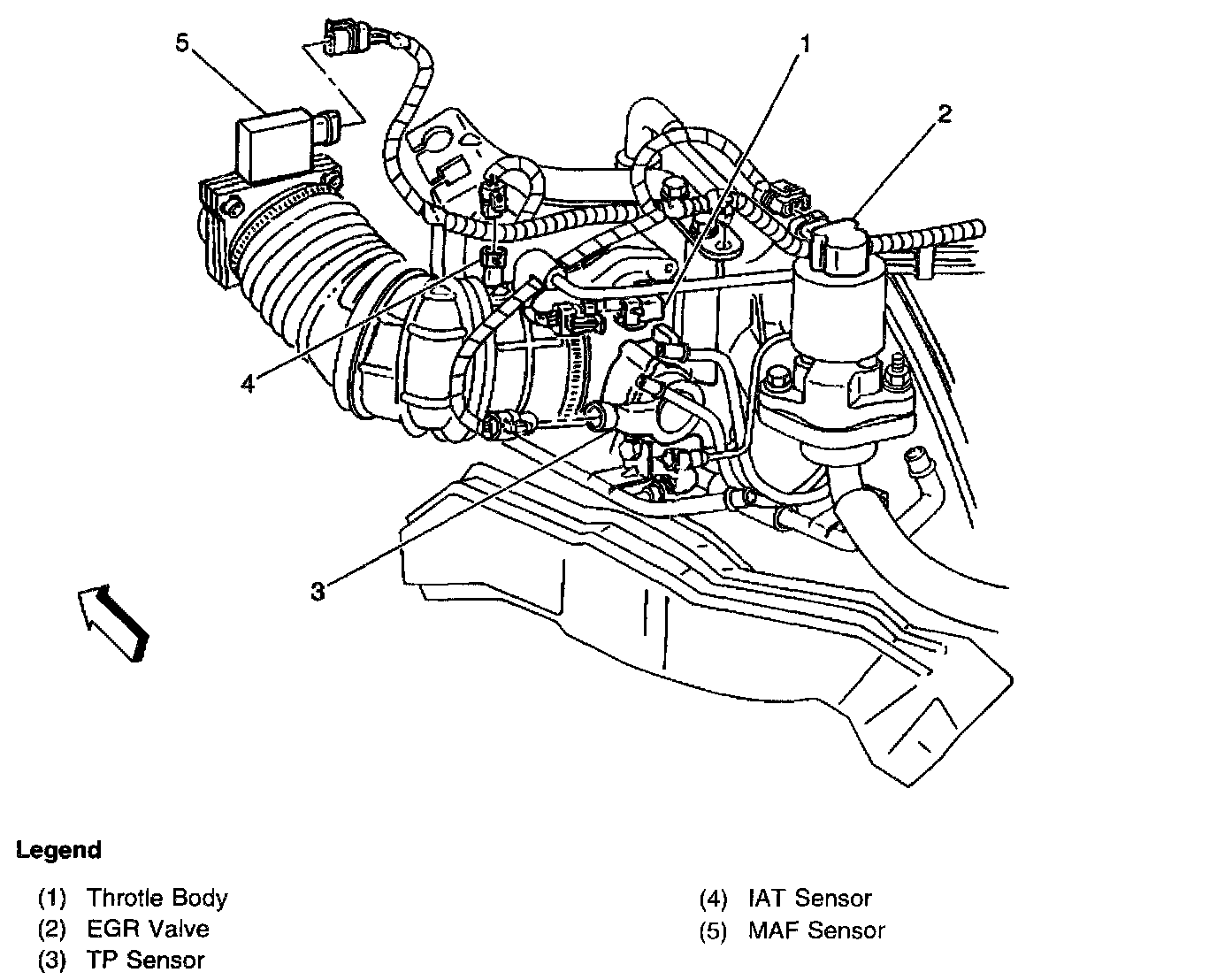

IAC, EGR Valves, TP, IAT, MAF Sensors:




Top, Front LH Side Of Engine:




Left front of the engine compartment, in the air cleaner duct
