Data Link Connector: Service and Repair

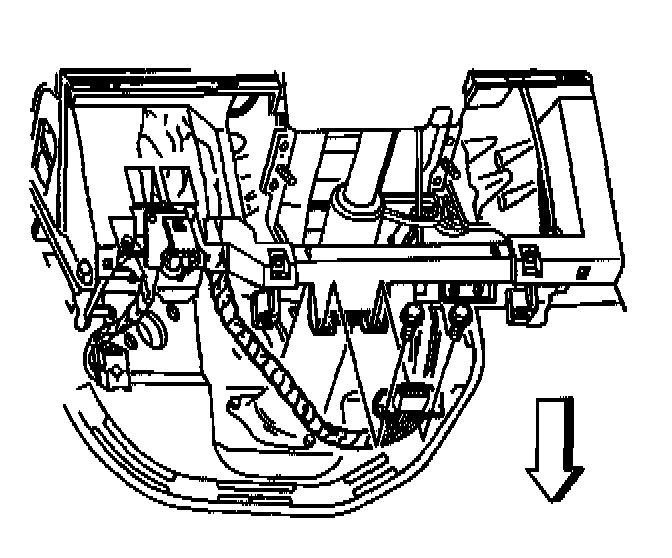

REMOVAL PROCEDURE
1. Remove the bolts/screws from the data link connector.
2. Remove the lower data link connector.

INSTALLATION PROCEDURE
1. Place the data link connector into position.

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the bolts/screws to the data link connector.

Tighten
Tighten the bolts/screws to 2 N.m (18 lb in).
