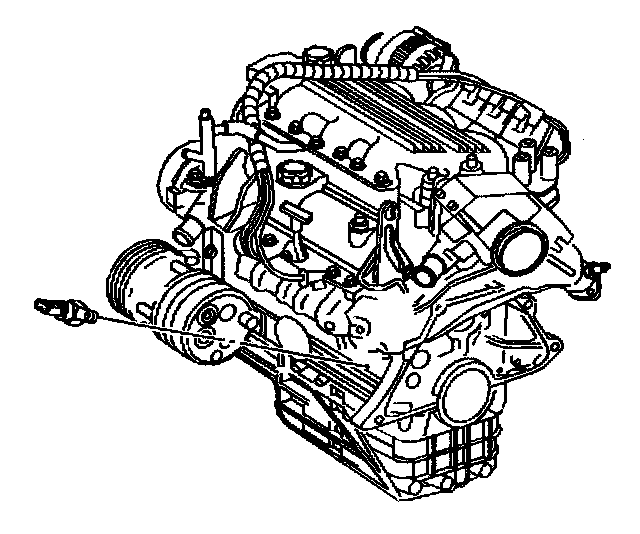

Oil Pressure Sensor: Service and Repair

Removal Procedure
1. Remove the battery negative cable from the battery.
2. Raise and suitably support the vehicle.
3. Remove the electrical connector from the engine oil pressure sensor.





4. Remove the engine oil pressure switch.

Installation Procedure





1. Install the engine oil pressure switch.
Tighten the switch to 16 Nm (12 ft. lbs.).
2. Install the electrical connector to the engine oil pressure switch.
3. Lower the vehicle.
4. Install the battery negative cable to the battery.
