Home >> Chevrolet >> 1999 >> Venture V6-3.4L VIN E >> Repair and Diagnosis >> Powertrain Management >> Transmission Control Systems >> Diagrams >> Electrical Diagrams

Electrical Diagrams

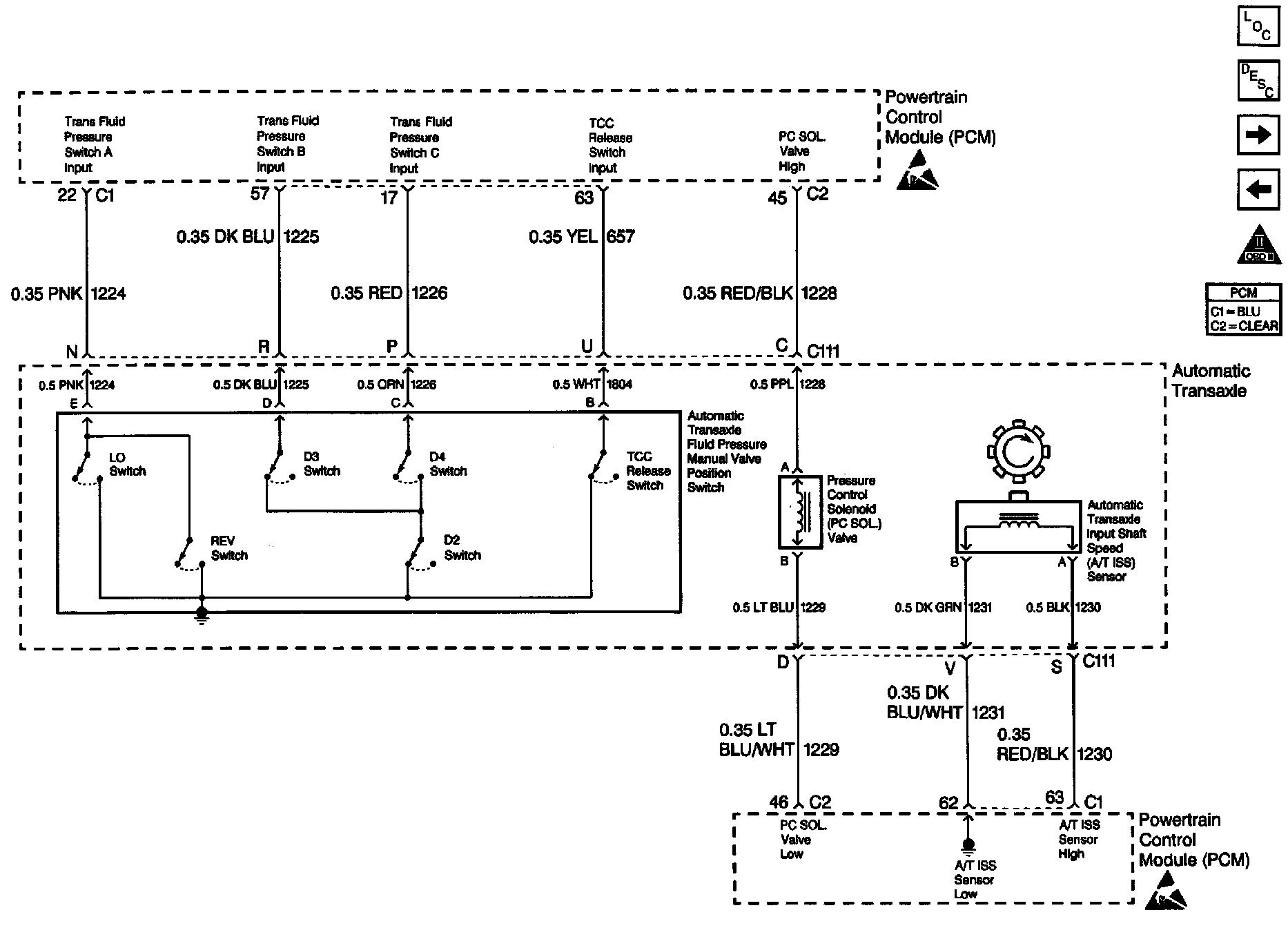

Automatic Transmission Controls Schematics (PCM Power, VSS)






Automatic Transmission Controls Schematics (Automatic Transaxle TCC Switch (1 of 2))

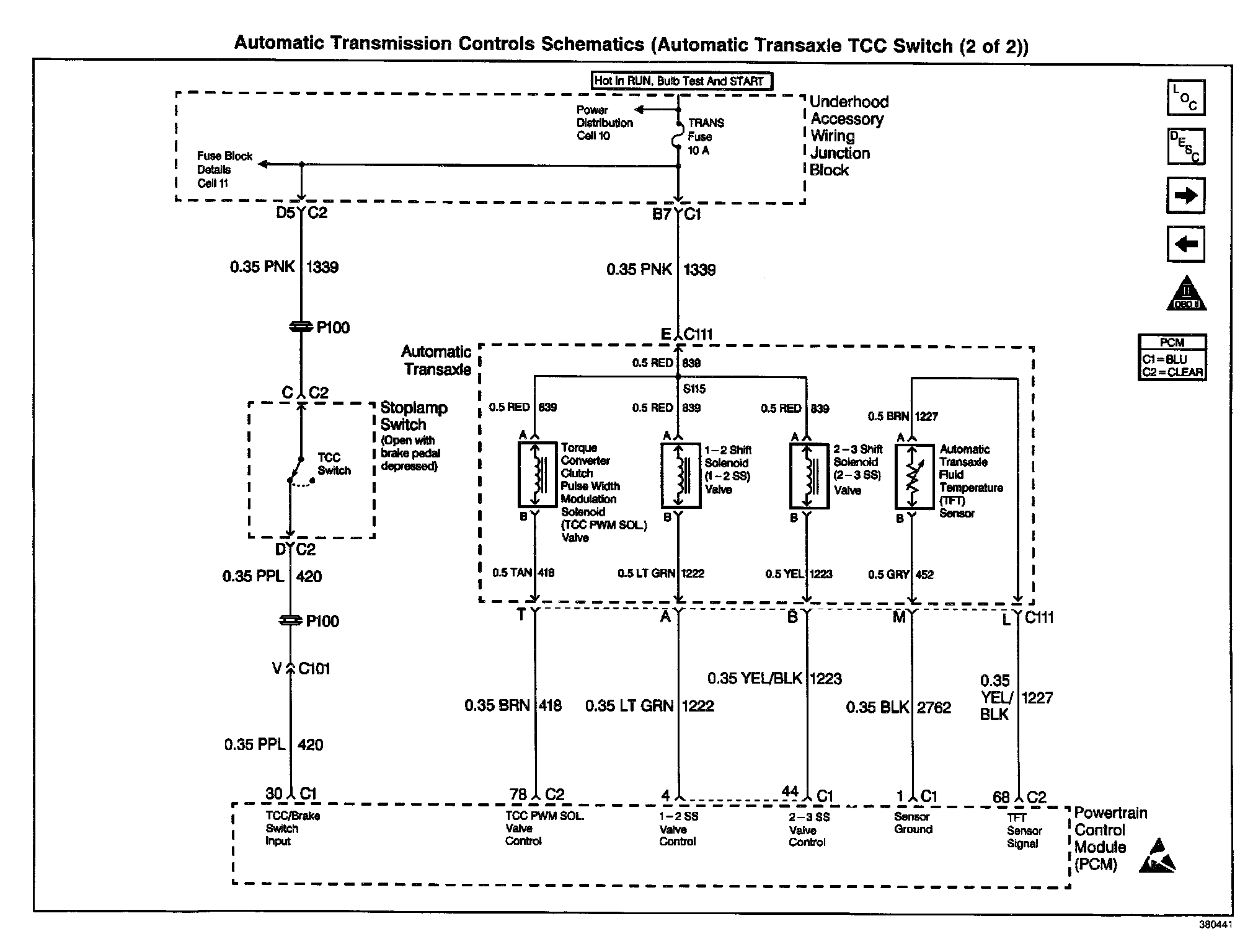

Automatic Transmission Controls Schematics (Automatic Transaxle TCC Switch (2 of 2))

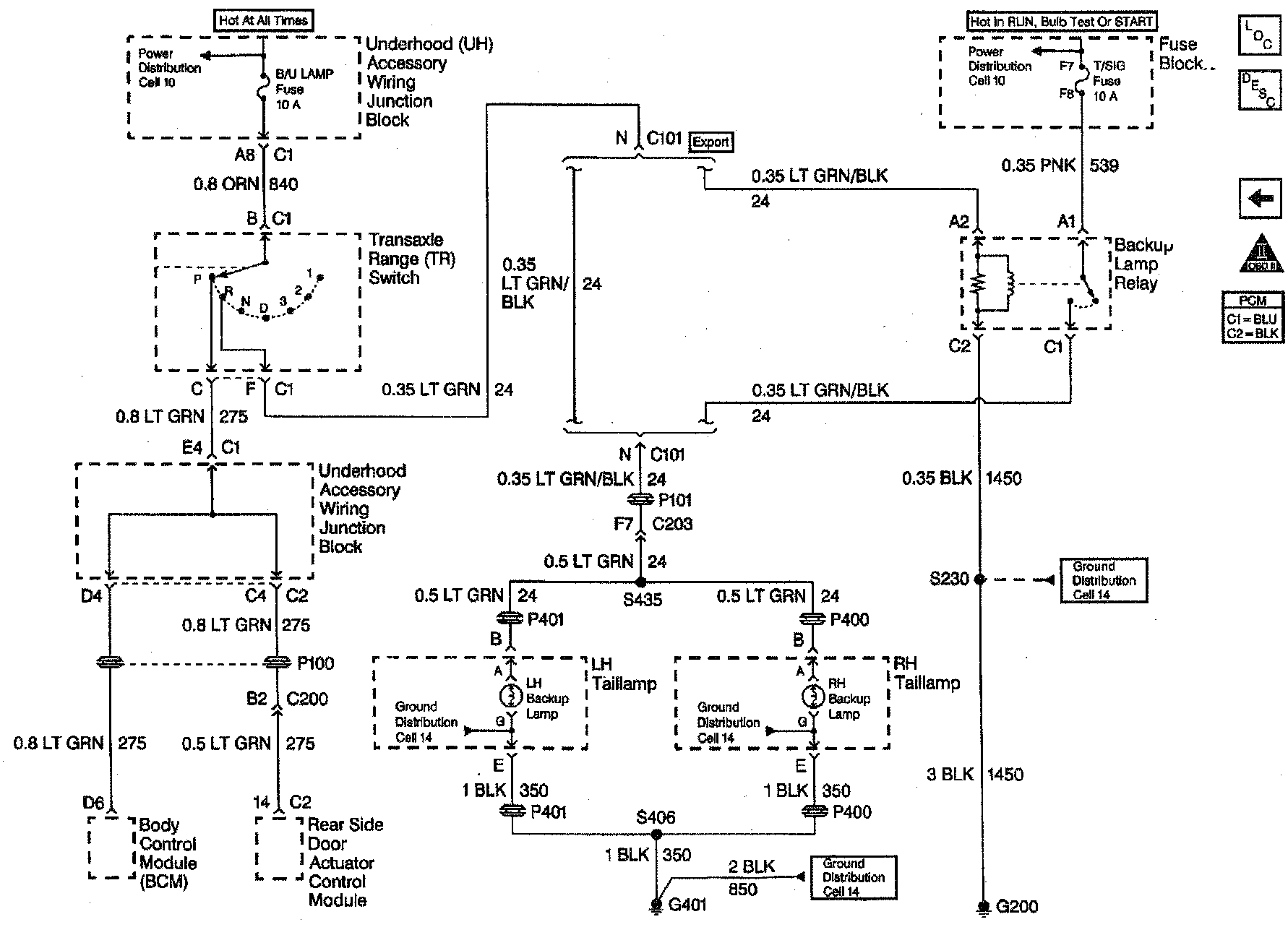

Automatic Transmission Controls Schematics (Transaxle Range Switch (1 of 2))






Automatic Transmission Controls Schematics (Transaxle Range Switch (2 of 2))
