Actuator Control Module Replacement - PSD

Actuator Control Module Replacement, Power Sliding Dooor (PSD)




REMOVAL PROCEDURE
1. Remove the right rear quarter lower trim panel.

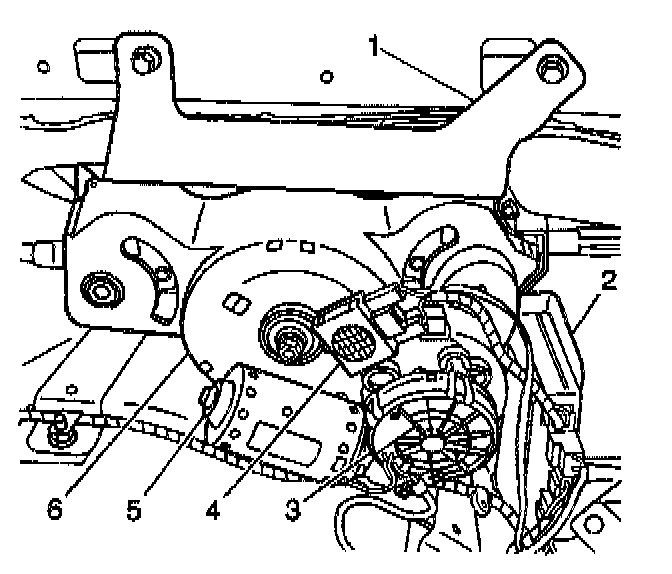

2. Disconnect the electrical connectors from the Power Sliding Door (PSD) actuator control module (2).
3. Pull the PSD actuator control module (2) inboard in order to unhook the control module from the actuator motor.

INSTALLATION PROCEDURE
1. Push the PSD actuator control module (2) outboard in order to unhook the control module from the actuator motor.
2. Install the PSD actuator control module electrical connectors.
3. Perform the reinitialization procedure. Refer to PSD Re-Initialization. Testing and Inspection
4. Install the right rear quarter lower trim panel.
