Door Module Replacement - Front

REMOVAL PROCEDURE




1. Remove the front door trim panel.
2. Remove the front door water deflector.

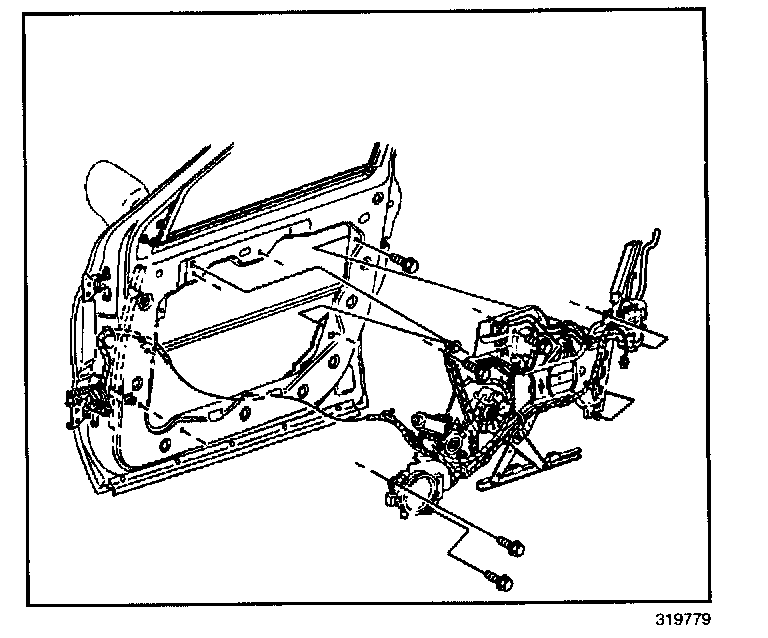

3. Remove the front door window.
4. Disconnect the electrical connectors.
5. Remove the front door lock module screws.
6. Remove the front door lock module from the front door.

INSTALLATION PROCEDURE




1. Install the front door lock module to the front door.
2. Align the lock module locator pin into the upper edge of the front door.

NOTE: Refer to Fastener Notice in Service Precautions.

3. Install the front door lock module screws.

Tighten
Tighten the screws to 10 N.m (89 lb in).

4. Connect the electrical connectors.
5. Install the front door window.
6. Install the front door water deflector.
7. Install the front door trim panel.
