Electronic Brake Control Module: Service and Repair

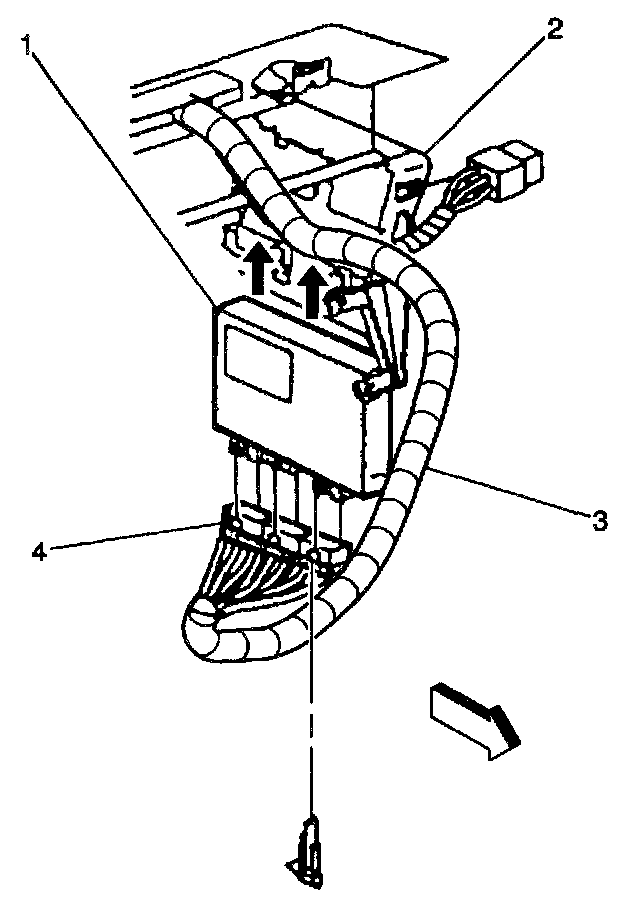

Removal Procedure
1. Remove the I/P sound insulator panel.

2. Remove the EBCM/EBTCM electrical connectors (4).
3. Use pressure tabs in order to release the EBCM/EBTCM (1) from the EBCM/EBTCM bracket (2).

Installation Procedure

1. Slide the EBCM/EBTCM (1) into the EBCM/EBTCM bracket (2) until pressure tabs secure the EBCM/EBTCM.
2. Install the EBCM/EBTCM electrical connectors (4).
3. Install the I/P sound insulator panel.
