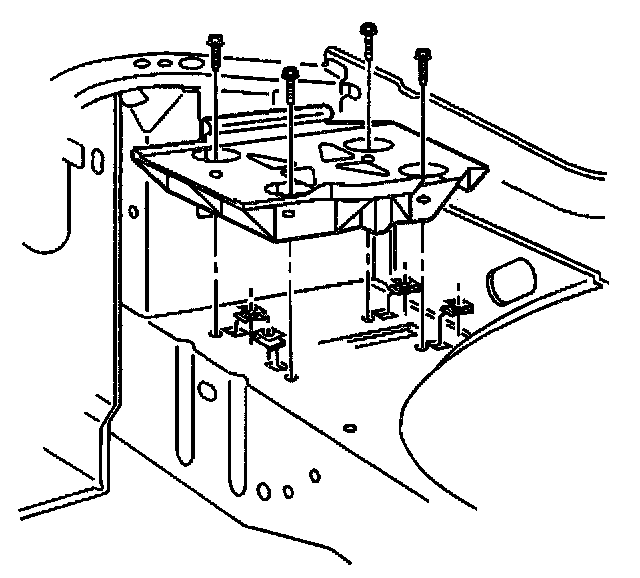

Battery Tray Replacement
REMOVAL PROCEDURE 1.
Remove the battery.
2.
Remove the battery tray bolts.
3.
Remove the battery tray.
INSTALLATION PROCEDURE 1.
Install the battery tray.
NOTE: Refer to Fastener Notice in Cautions and Notices.
2.
Install the battery tray bolts.
Tighten Tighten the battery tray bolts to
10 N.m (89 lb in).
3.
Install the battery.
