Generator Bracket Replacement

REMOVAL PROCEDURE

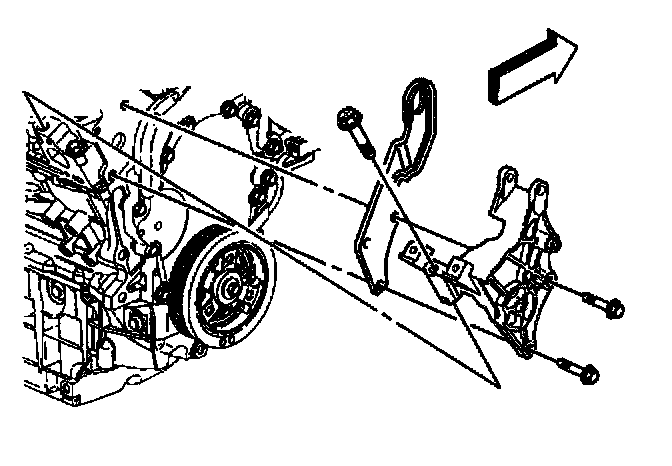

1. Remove the generator.
2. Remove the drive belt tensioner.
3. Remove the generator bracket bolts.
4. Remove the generator bracket.

INSTALLATION PROCEDURE
1. Install the generator bracket.

NOTE: Refer to Fastener Notice in Cautions and Notices.

2. Install the generator bracket bolts.
Tighten
Tighten the generator bracket bolts in the sequence shown to 50 N.m (37 lb ft).

3. Install the drive belt tensioner.
4. Install the generator.
