Feature Customization - Automatic Door Lock - Changing Operation Mode

Perform the following procedure to change the automatic door lock operation mode:
1. Turn off the IP dimmer switch.
2. Turn the ignition switch to the LOCK position.
3. Remove the BCM PRGRM fuse.
4. Turn the ignition switch to the ACC position.
^ The BCM sounds the chime a number of times equivalent to the BCM type installed on the vehicle (1, 2, 3, or 4 chimes).
^ Now the BCM has entered the feature customization mode.
5. To change the automatic door lock operation mode, press and release the LOCK on either door lock switch.
^ The BCM sounds the chime a number of times equivalent to the automatic door lock operation mode.
^ A transition past mode 4 repeats the sequence starting with mode 1.

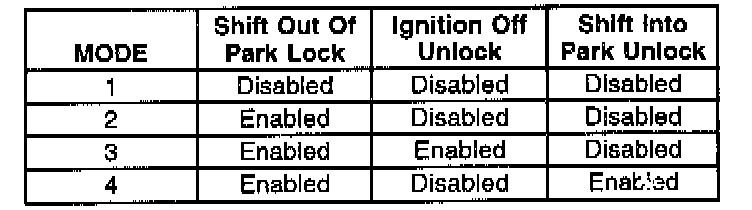

The automatic door lock operation modes are as follows:




To exit and save the current customization mode:
1. Turn the ignition switch to the lock position.
2. Reinstall the BCM PRGRM fuse.

If unable to change lock modes, refer to Feature Customization Mode Inoperative for diagnosis and repair. Testing and Inspection
