Window Guide Replacement - Door

REMOVAL PROCEDURE




1. Remove the front door trim panel.
2. Remove the front door water deflector.
3. Remove the front door window.
4. Use a small flat-bladed tool in order to unsnap the front door window clips.
5. Remove the front door window clips from the front door window.

INSTALLATION PROCEDURE

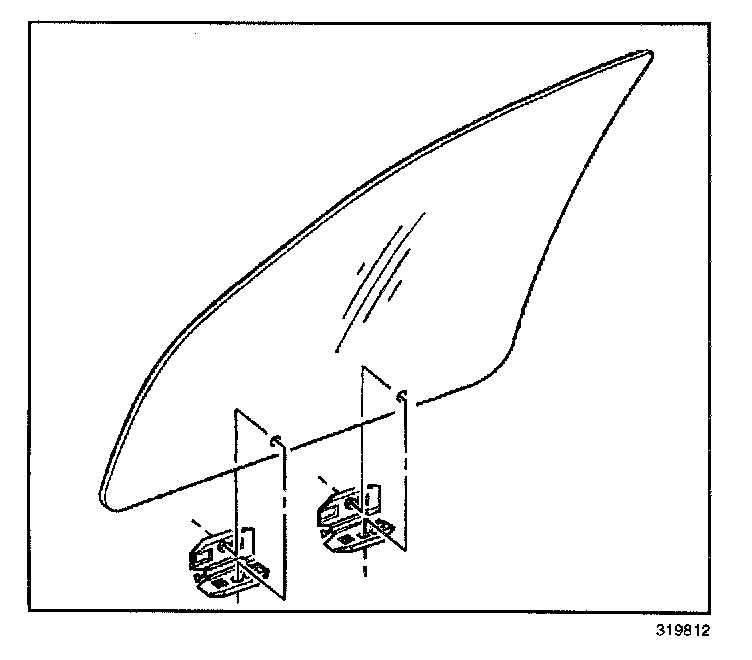

1. Align the clip holes in the window.
2. Squeeze the front door window clip together onto the window.
3. Install the front door window.
4. Install the front door water deflector.
5. Install the front door trim panel.
