Window Run Channel Replacement - Front Door

REMOVAL PROCEDURE




1. Remove the front door trim panel.
2. Remove the front door water deflector.
3. Remove the front door window weatherstrip.
4. Remove the front door window.
5. Remove the front door module.

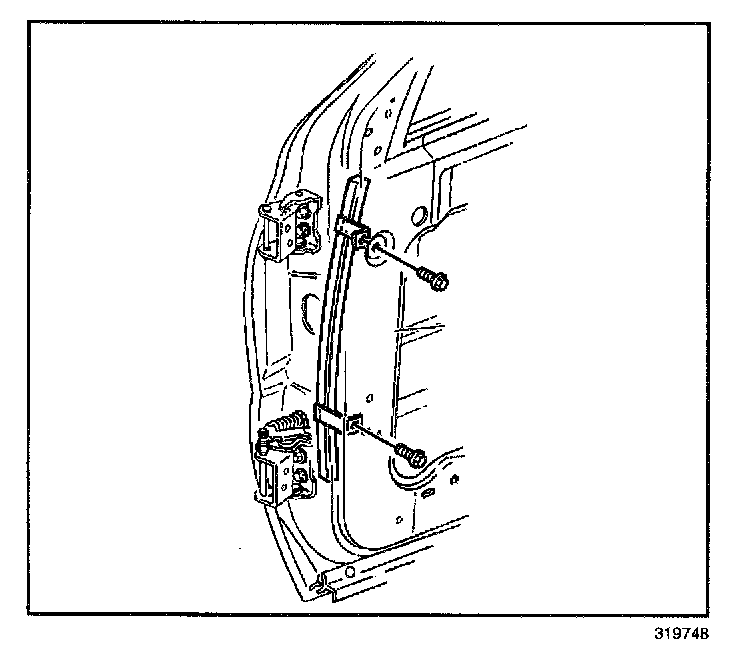

6. Remove the front door window run channel screws.
7. Remove the front door window run channel from the front door.

INSTALLATION PROCEDURE

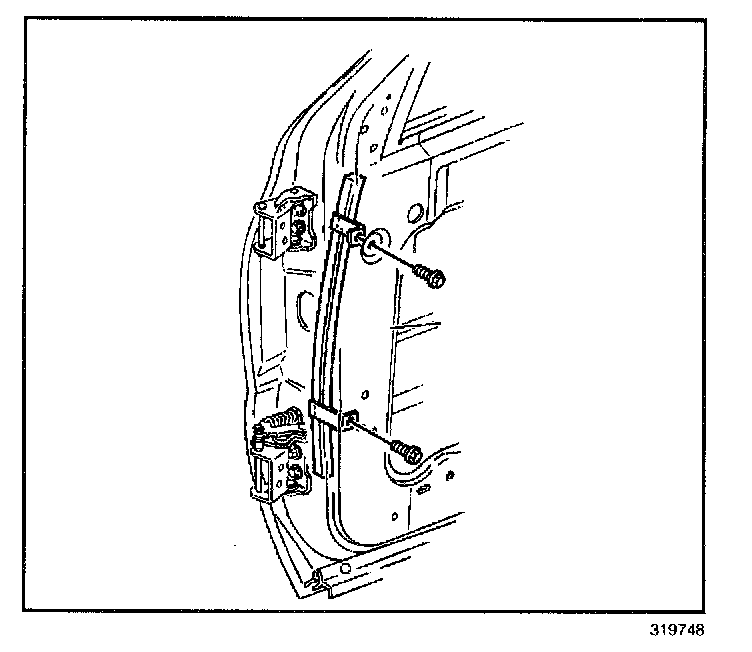

1. Install the front door window run channel to the door.

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the front door window run channel screws.

Tighten
Tighten the screws to 10 N.m (89 lb in).

3. Install the front door module.
4. Install the front door window.
5. Install the front door window weatherstrip.
6. Install the front door water deflector.
7. Install the front door trim panel.
