Window Handle: Service and Repair

REMOVAL PROCEDURE

TOOLS REQUIRED
J9886-01 Door Handle Clip Remover

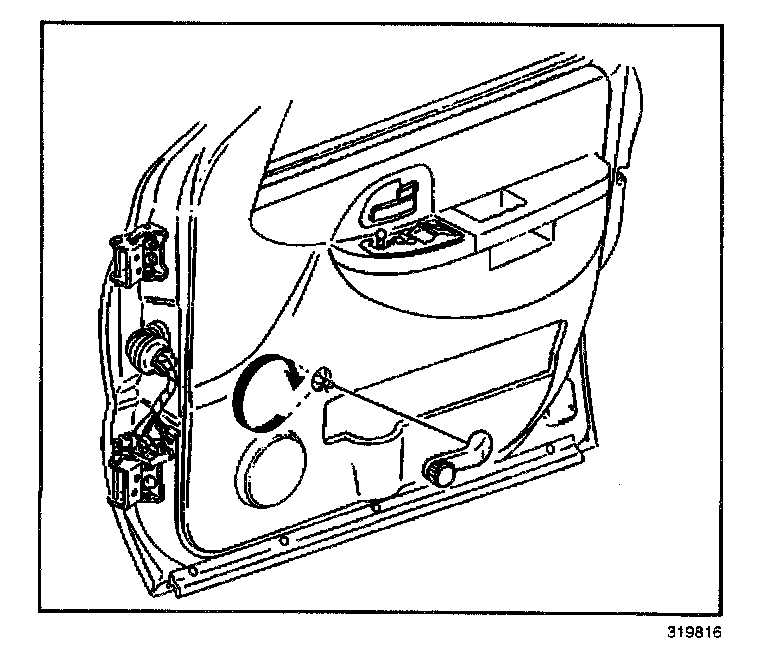

1. Use the J 9886-01 in order to remove the handle clip.
2. Remove the handle from the regulator.

INSTALLATION PROCEDURE

1. Install the handle clip to the handle. Ensure the open end is down.
2. Firmly seat the handle to the regulator shaft.
