Engine Cover





ENGINE COVER

Removal Procedure
1. Remove the instrument panel extension. Refer to "Instrument Panel Extension".

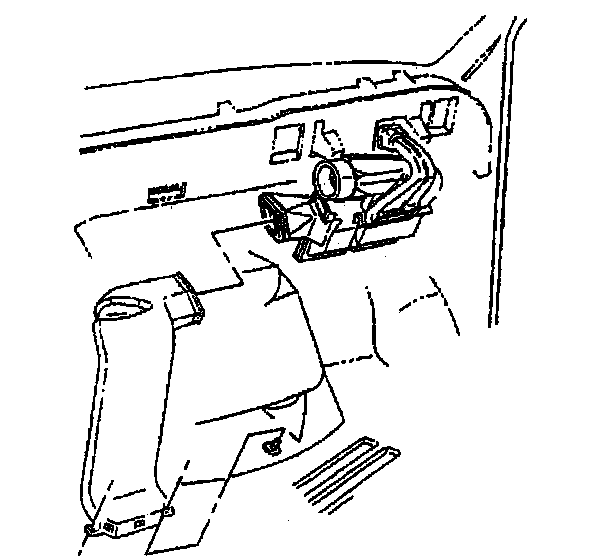

2. Remove the floor air outlet duct. Refer to "Air Outlet - Center Floor".

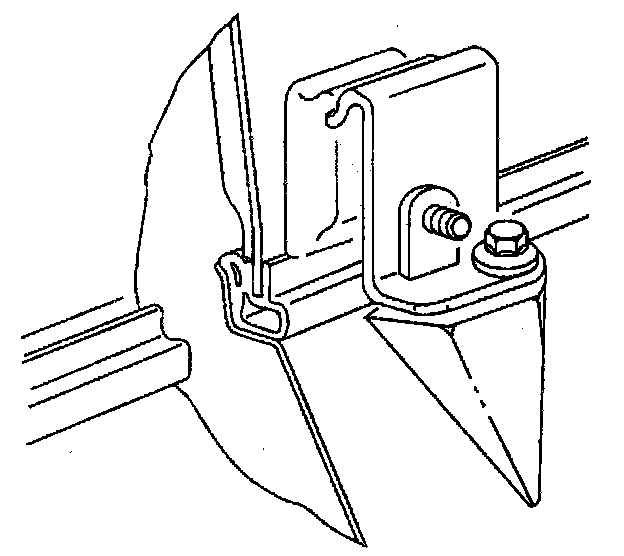

3. Remove the bolts from the brackets:
- Loosen the bolt.
- Rotate the bracket out of the way.

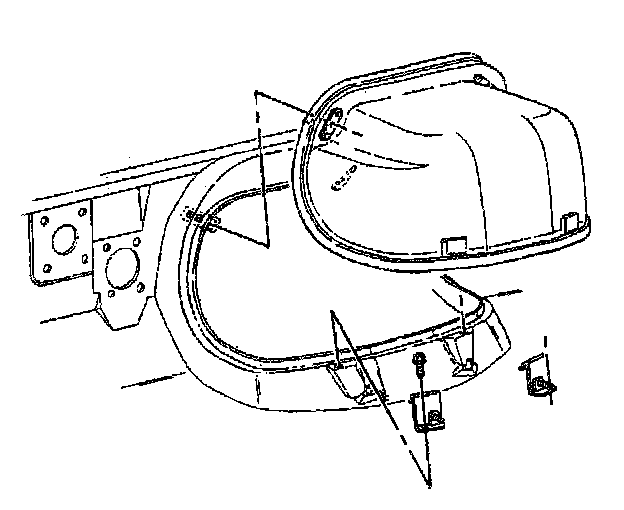

4. Remove the latches.

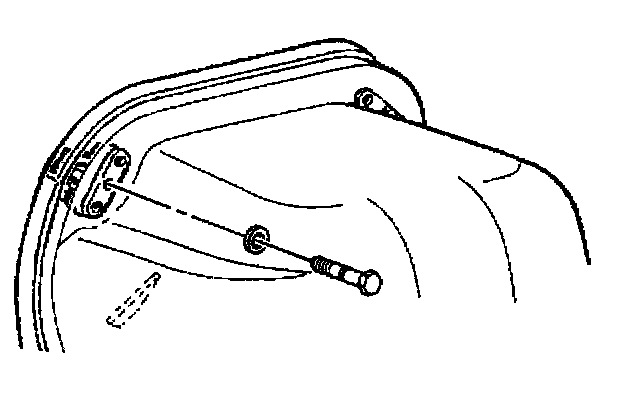

5. Remove the screws.




6. Remove the engine cover.

Installation Procedure

1. Install the engine cover.
2. Install the screws to the engine cover. Do not fully tighten the screws.
3. Install the latch screws.

Tighten
Tighten the latch screws to 4 Nm (35 lb in).

4. Install the engine cover bolts to the brackets.

Tighten
Tighten the engine cove bolt to 25 Nm (18 lb ft).

5. Insert the floor air outlet duct.
6. Insert the instrument panel extension.
