Mirror Replacement

REMOVAL PROCEDURE




1. Remove the front door window belt filler.
2. Remove the sound insulator patch.
3. Disconnect the electrical connector, if equipped.

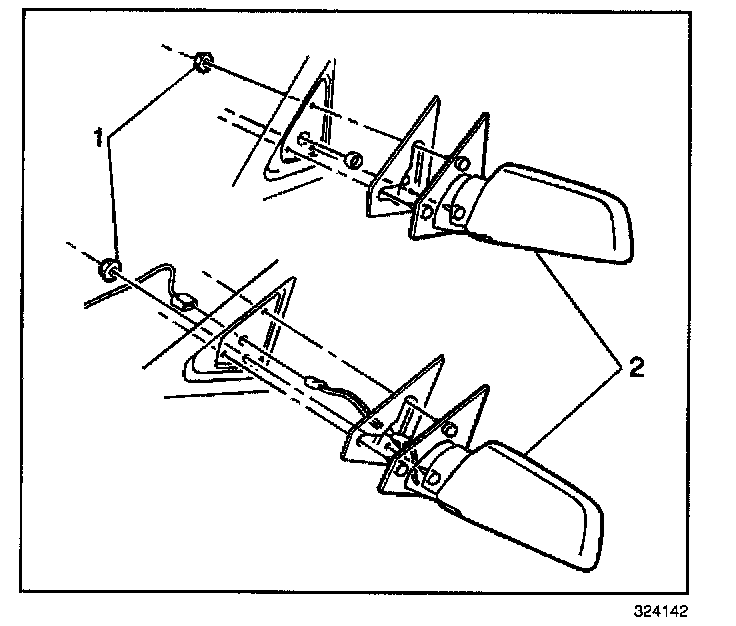

4. Remove the nuts (1) from the mirror.
5. Remove the mirror (2) from the door.

INSTALLATION PROCEDURE




1. Install the mirror (2) to the door.

NOTE: Refer to Fastener Notice in Service Precautions.
2. Install the nuts (1) to the mirror.

Tighten
Tighten the nuts (1) to the mirror to 10 N.m (88 lb in).

3. Connect the electrical connector, if equipped.
4. Install the sound insulator patch.
5. Install the front door window belt filler.
