Wheel Speed Sensor: Service and Repair

Removal Procedure
1. Raise vehicle.
2. Remove tire and wheel. Refer to Tire and Wheel Removal and Installation

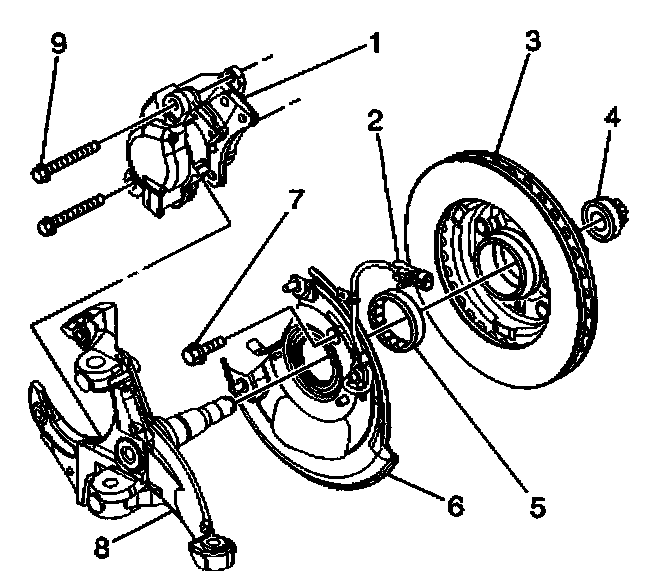

3. Remove brake caliper (1). Refer to Brake Caliper Replacement
4. Remove the hub and rotor assembly (3). Refer to Brake Rotor Replacement Remove wheel speed sensor cable electrical connector (2).
6. Remove the wheel speed sensor harness clip rivets using a 3/16 inch drill bit.
7. Remove clips from the wheel speed sensor wire. Save the clips for the replacement sensor.
8. Remove wheel speed sensor mounting bolts and nut.
9. Remove two splash shield mounting bolts (7).
10. Remove wheel speed sensor and splash shield assembly (6). Remove splash shield gasket. Clean gasket and knuckle (8) surfaces thoroughly with a dry cloth.

Installation Procedure
1. Install splash shield gasket.





2. Install wheel speed sensor splash shield (6).

Notice: Refer to Fastener Notice in Service Precautions.

3. Install two 11 mm splash shield mounting bolts.
- Tighten the splash shield mounting bolts to 16 Nm (12 ft. lbs.).
4. Install wheel speed sensor mounting bolts and nut.
- Tighten the speed sensor mounting bolts to 26 Nm (1 9 ft. lbs.).
5. Install harness clips to the wheel speed sensor wire. Locate clips at paint dots on wire.
6. Install harness clips with 3/16 inch rivets.
7. Connect wheel speed sensor electrical connector (2).
8. Install the hub and rotor (3). Refer to Brake Rotor Replacement.
9. Install brake caliper (1). Refer to Brake Caliper Replacement.
10. Install tire and wheel. Refer to Tire and Wheel Removal and Installation.
