Air Conditioning Switch: Service and Repair

REMOVAL PROCEDURE




1. Remove the instrument cluster trim plate..

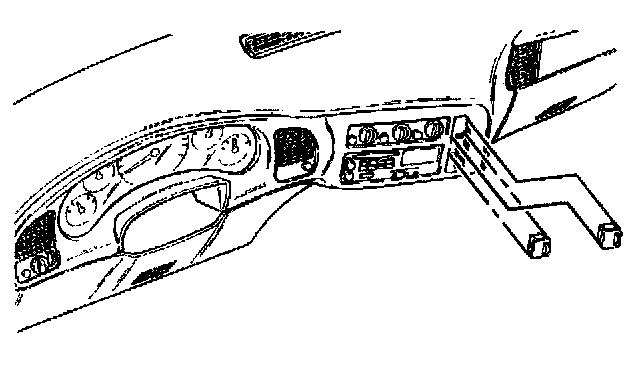

2. Remove the heater switch from the heater switch bezel by releasing the tabs on the sides of the switch.
3. Disconnect the electrical connectors from the heater switch.

INSTALLATION PROCEDURE




1. Install the heater switch to the heater switch bezel by snapping it into place.
2. Connect the electrical connectors to the heater switch.
3. Install the Instrument cluster trim plate.
