Liftgate Strut Switch Wiring
Liftgate Strut Switch Wiring

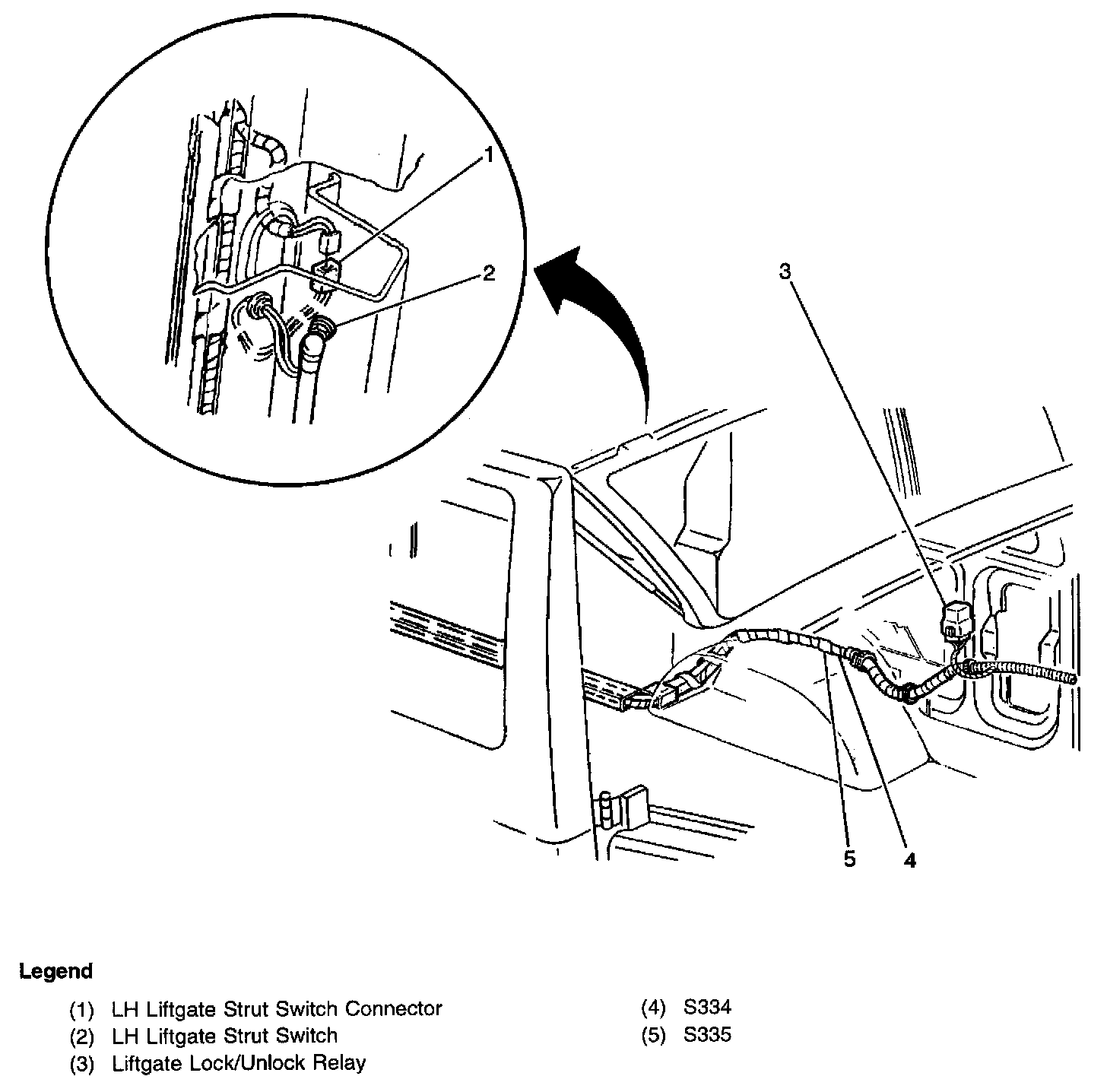

Harness Routing Views (Liftgate Strut Switch Wiring):
