Floor

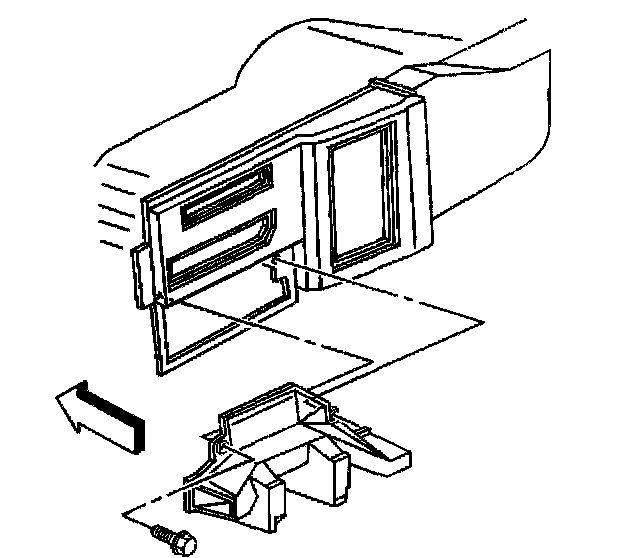

REMOVAL PROCEDURE




1. Remove the front floor console.
2. Remove the front floor air outlet bolts.
3. Remove the front floor air outlet.

INSTALLATION PROCEDURE




1. Install the front floor air outlet.

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the front floor air outlet bolts

Tighten
Tighten the floor air outlet bolts to 1.9 N.m (17 lb in).

3. Install the front floor console.
