Clutch Pedal Position Switch Replacement

Removal Procedure





1. Remove the instrument panel driver knee bolster.

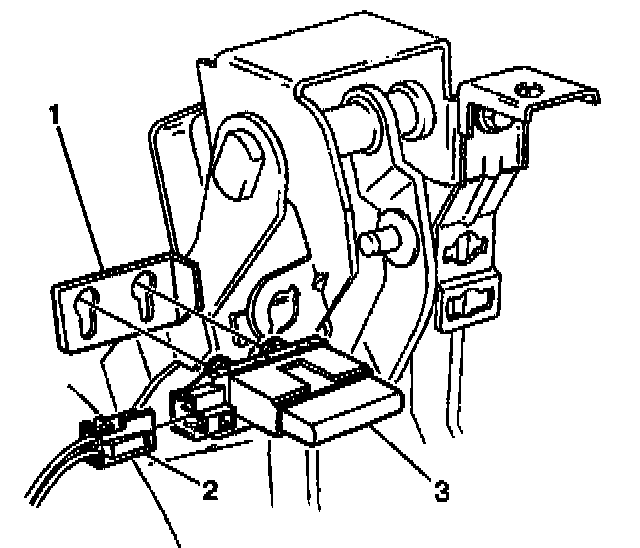

2. Disconnect the clutch pedal position switch electrical connector (2).
3. Pull up to disengage the clutch pedal position switch (3) from the pedal bracket (1).
4. Remove the clutch pedal position switch (3).


Installation Procedure





1. Install the clutch pedal position switch (3).
2. Align the buttons on the clutch pedal position switch (3) to the slotted holes on the bracket (1).
3. Press the clutch pedal position switch (3) down until secure.
4. Connect the clutch pedal position switch electrical connector (2).
5. Install the instrument panel driver knee bolster.
