Traction Control Switch: Service and Repair

Removal Procedure





1. Unsnap the I/P accessory trim plate.

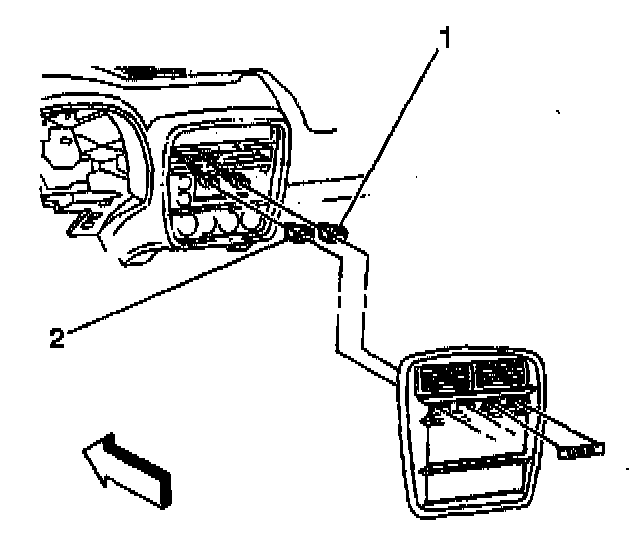

2. Disconnect the electrical connector from the fog lamp switch (2).
3. Disconnect the electrical connector from the traction control switch (1).

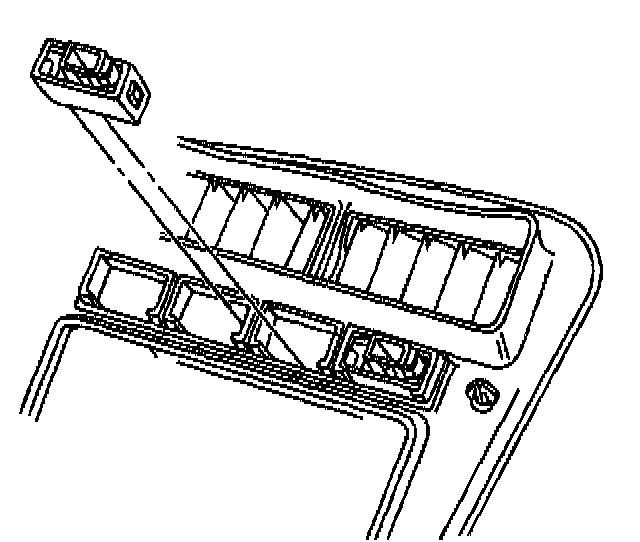

4. Unsnap the traction control switch from the I/P accessory trim plate.

Installation Procedure





1. Install the traction control switch to the I/P accessory trim plate.

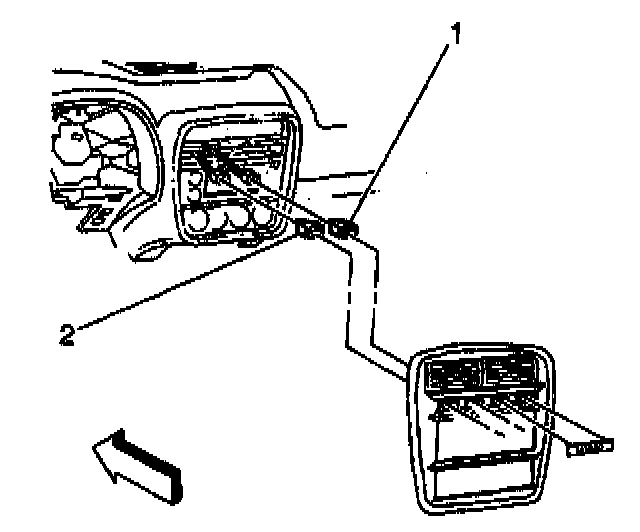

2. Connect the electrical connector to the traction control switch.
3. Traction control switch to the instrument panel accessory trim plate (1).





4. Install the I/P accessory trim plate.
