Trunk / Liftgate Lock Cylinder: Service and Repair

Rear Compartment Lid Lock Cylinder Replacement (Chevrolet)

Removal Procedure

1. Remove the compartment lid applique.




2. Remove the compartment lid latch cable assembly (8).




3. Remove the compartment lid lock cylinder retainer (4).

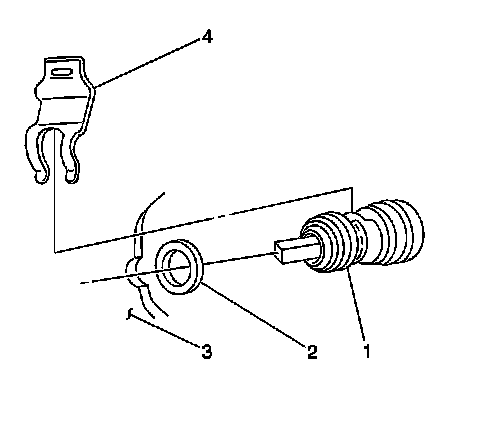

4. Remove the compartment lid lock cylinder (1).

Installation Procedure




1. Install the compartment lid lock cylinder (1).
2. Install the compartment lid lock cylinder retainer (4).




3. Install the compartment lid remote release cable (1) to the lock release box (2).
4. Press and secure the cable door at the top of the compartment lock release box.
5. Install the compartment lid latch cable assembly (8).
6. Install the compartment lid applique.
