HVAC System - Manual

REMOVAL PROCEDURE




1. Remove the front floor kick-up panel.
2. Remove the cover from the I/P electrical center.

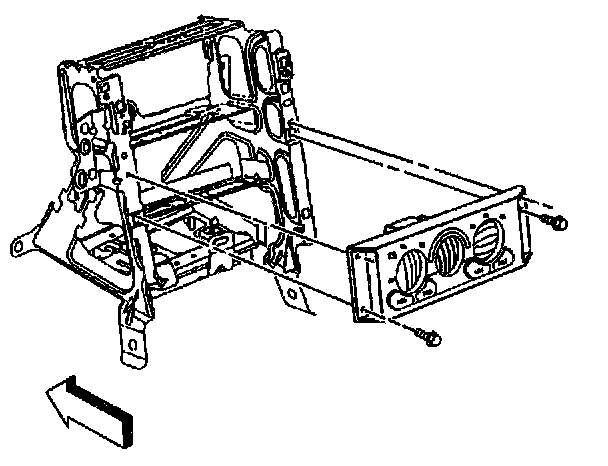

3. Remove the HVAC CON (HVAC controls) MiniFuse(R) #27 from the I/P electrical center.
4. Remove the I/P accessory trim plate.
5. Remove the screws retaining the HVAC control head.
6. Pull the control assembly out from the I/P center support bracket to access the electrical and vacuum connectors.

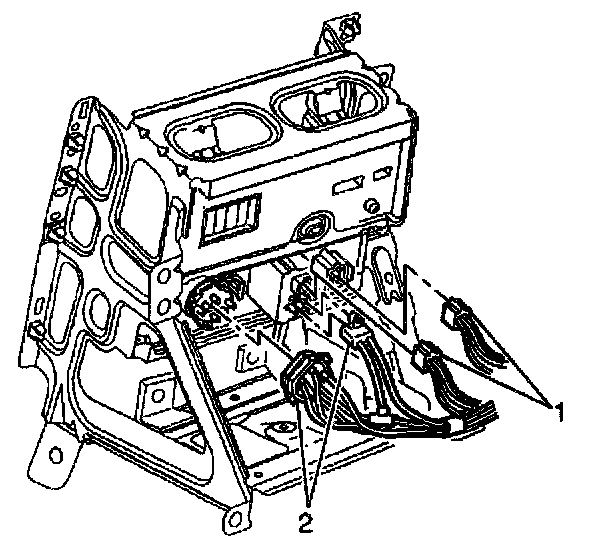

7. Disconnect the electrical connectors (1) from the control assembly.
8. Disconnect the vacuum harness connectors (2) from the control assembly.
9. Remove the control assembly from the vehicle.

INSTALLATION PROCEDURE




1. Connect the vacuum harness connectors (2) to the HVAC control assembly.
2. Connect the electrical connectors (1) to the control assembly.




3. Install the control head to the I/P center support bracket.

NOTE: Refer to Fastener Notice in Service Precautions.

4. Install the HVAC control assembly retaining screws.

Tighten
Tighten the HVAC control assembly retaining screws to 1.9 N.m (17 lb in).

5. Install the I/P accessory trim panel.
6. Install the HVAC CON (HVAC controls) MiniFuse(R) #27 to the I/P electrical center.
7. Install the cover to the I/P electrical center.
8. Install the front floor kick-up panel.
