Heating, Ventilation and Air Conditioning

REMOVAL PROCEDURE

CAUTION: Refer to Battery Disconnect Caution in Service Precautions.




1. Disconnect the negative battery cable.
2. Remove the IP accessory trim plate.

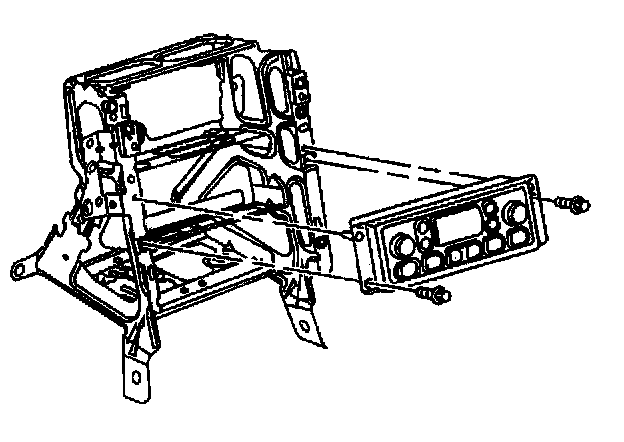

3. Remove the HVAC control head retaining screws.

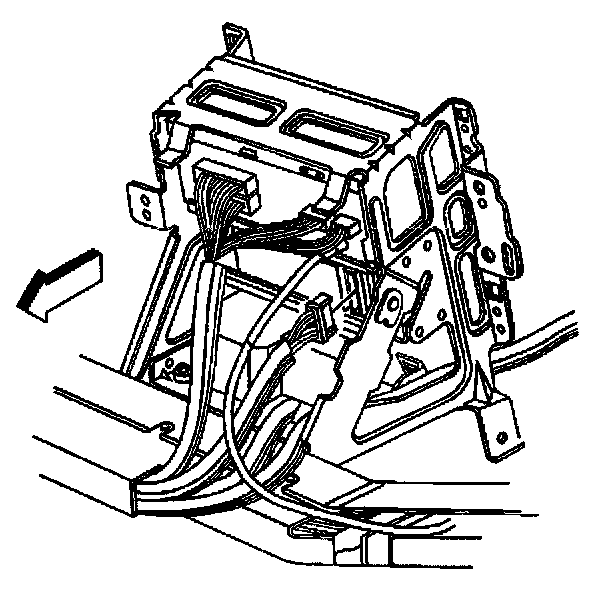

4. Pull the control head out from the IP center support bracket to access the electrical connector.




5. Disconnect the electrical connector from the control head.
6. Remove the control head from the vehicle.

INSTALLATION PROCEDURE




1. Connect the electrical connector to the HVAC control head.




2. Install the control head to the IP center support bracket.

NOTE: Refer to Fastener Notice in Service Precautions.

3. Install the HVAC control head retaining screws.

Tighten
Tighten the HVAC control head retaining screws to 1.9 N.m (17 lb in).

4. Install the IP accessory trim plate.

Tighten
Tighten the negative battery cable bolt to 15 N.m (11 lb in).

6. Program the transmitters. Refer to Transmitter Programming/Synchronization in keyless Entry.
