Rear Camber Adjustment

Rear Camber Adjustment





1. Loosen the lower control arm cam bolt nuts.

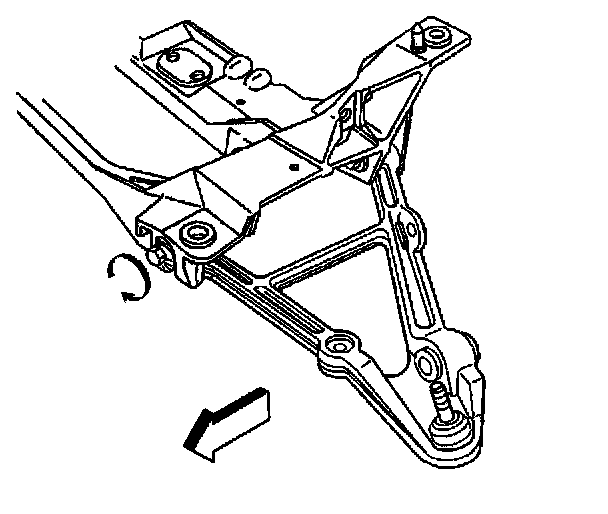

2. Rotate the cam bolts to the required camber specification setting. Refer to Wheel Alignment Specifications.

Notice: Refer to Fastener Notice in Service Precautions.

3. Maintain the camber setting while tightening the cam bolt nuts.
- Tighten the rear lower control arm (front) bolt nut to 145 Nm (107 ft. lbs.).
- Tighten the rear lower control arm (rear) bolt nut to 90 Nm (71 ft. lbs.).

Important: Check the toe setting AFTER changing camber or caster.

4. Check the camber setting after tightening. Adjust the camber setting if necessary.
