Removal

Removal Procedure

Important: The Tire Pressure Monitor (TPM) system uses the same receiver as the Remote Function Actuation (RFA) system. The service replacement receiver must be programmed to accept both the TPM sensors and the keyless entry transmitters. Refer to Tire Pressure Monitoring Sensor Programming and Transmitter Programming/Synchronization.





1. Turn the ignition to OFF.

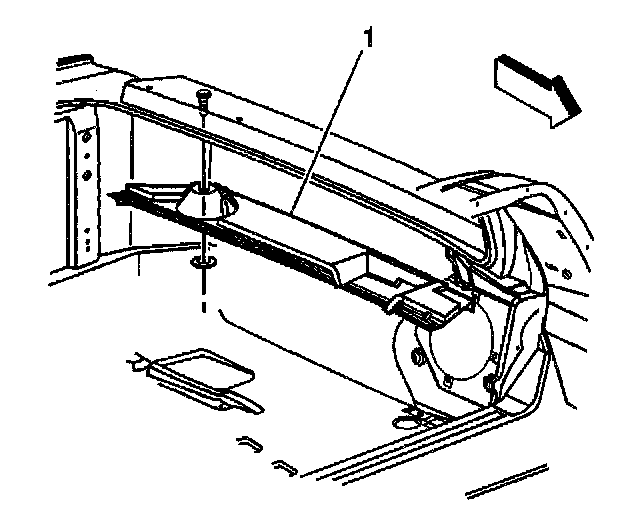

2. Remove the left rear compartment insulator (1).

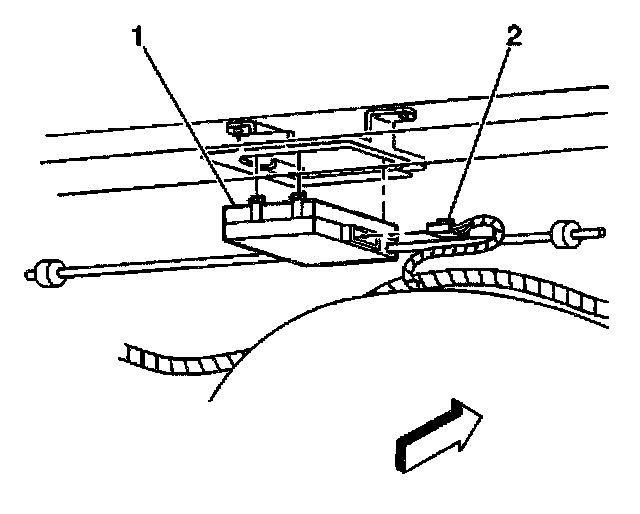

3. Gently pull on the retainer at the back side of the receiver (1).
4. Pull out the receiver (1) only enough to expose the connector (2).
5. Disconnect the receiver connector (2).
